MA5157-AL Frequently Asked Questions (FAQs)

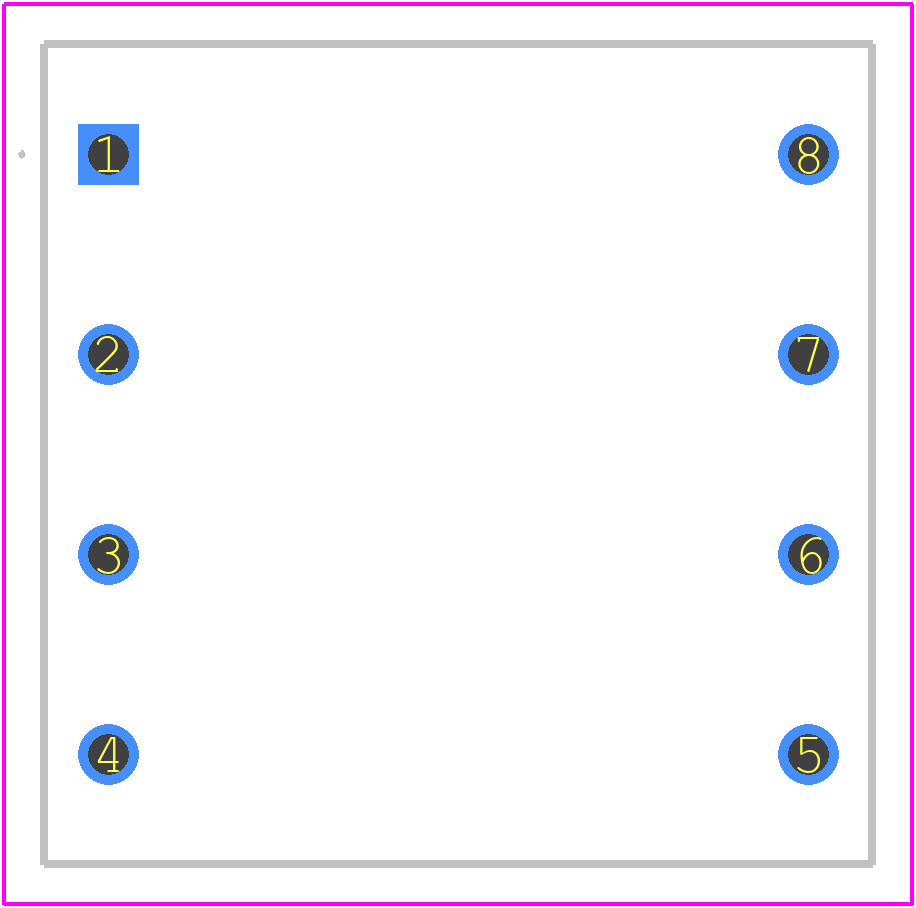

• What is the recommended land pattern for the MA5157-AL?
  Coilcraft provides a recommended land pattern for the MA5157-AL in their datasheet, which includes dimensions for the pad size, spacing, and layout. It's essential to follow this pattern to ensure proper soldering and to minimize thermal resistance.
• How do I handle the MA5157-AL's high self-resonant frequency (SRF) in my design?
  To handle the high SRF of the MA5157-AL, it's essential to consider the operating frequency of your circuit and ensure that it's below the SRF. You can also use impedance analysis tools to model the inductor's behavior and optimize your design accordingly.
• What is the maximum operating temperature range for the MA5157-AL?
  The MA5157-AL has an operating temperature range of -40°C to +125°C. However, it's essential to consider the derating curves provided in the datasheet to ensure that the inductor operates within its specified parameters across the entire temperature range.
• How do I select the right MA5157-AL inductor value for my application?
  To select the right MA5157-AL inductor value, you need to consider the specific requirements of your application, including the operating frequency, current rating, and impedance requirements. Coilcraft provides a range of inductor values for the MA5157-AL, and you can use their online tools or consult with their application engineers to select the right value for your design.
• What is the recommended soldering process for the MA5157-AL?
  Coilcraft recommends using a reflow soldering process with a peak temperature of 260°C for the MA5157-AL. It's essential to follow a controlled soldering process to ensure that the inductor is properly soldered and to minimize the risk of damage or defects.
