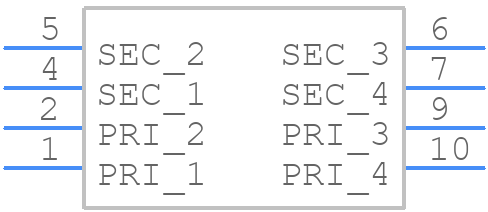

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MA5421-ALD
- Part Number MA5421-ALD
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - MA5421-ALD-2
- Released Date Jan 25, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MA5421-ALD Details
-
Manufacturer Part Number:
MA5421-ALD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINALS ALSO
-
Height:
12.7 mm
-
Length:
13.46 mm
-
Mounting Feature:
SURFACE MOUNT
-
Number of Primary Winding:
2
MA5421-ALD Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended PCB land pattern in their documentation, which includes a rectangular pad with a size of 4.5 mm x 2.5 mm, and a thermal pad with a size of 2.5 mm x 2.5 mm.
-
The MA5421-ALD is a molded inductor, which makes it sensitive to moisture. To handle this, it's recommended to follow the standard moisture sensitivity level (MSL) guidelines for handling and storage, and to avoid exposing the component to high humidity or moisture during assembly and storage.
-
The MA5421-ALD has an operating temperature range of -40°C to +125°C, but it's recommended to derate the component's current rating at higher temperatures to ensure reliable operation.
-
To ensure proper soldering, follow the recommended soldering profile, use a solder with a melting point below 220°C, and avoid applying excessive heat or mechanical stress to the component during the soldering process.
-
The ESR of the MA5421-ALD is not explicitly stated in the datasheet, but it can be estimated to be around 0.1-0.2 ohms based on the component's DC resistance and inductance values.
Trust Checks
Community Provided
System Verified
Community Approved
MA5421-ALD Overview
Use the download button to access the MA5421-ALD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MA542,
or try a keyword search, such as SMPS Transformers
