- Part Number MAAD-000523-TR1000
- Manufacturer MACOM
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-Lead PQFN
- Released Date Dec 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAAD-000523-TR1000 Details
-
Manufacturer Part Number:
MAAD-000523-TR1000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-24
-
Country Of Origin:
Malaysia
-
Manufacturer:
MACOM
-
YTEOL:
6.6
-
Additional Feature:
CMOS COMPATIBLE
-
Attenuation-Nom:
31.5 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
MAAD-000523-TR1000 Frequently Asked Questions (FAQs)
-
MACOM recommends a 4-layer PCB with a thermal via array under the module to dissipate heat. A heat sink or thermal interface material is also recommended to ensure optimal thermal performance.
-
Use a 50-ohm microstrip transmission line to match the input and output impedance of the amplifier. MACOM provides a recommended PCB layout and impedance matching network in the application note.
-
The maximum safe operating temperature is 85°C. Operating above this temperature may reduce the amplifier's reliability and lifespan.
-
Yes, the MAAD-000523-TR1000 can be used in pulsed mode operation. However, the pulse width and duty cycle must be carefully controlled to avoid overheating and ensure reliable operation.
-
MACOM recommends using a K-type or SMA connector for the input and output ports to ensure low-loss and high-power handling.
Trust Checks
Community Provided
System Verified
Community Approved
MAAD-000523-TR1000 Overview

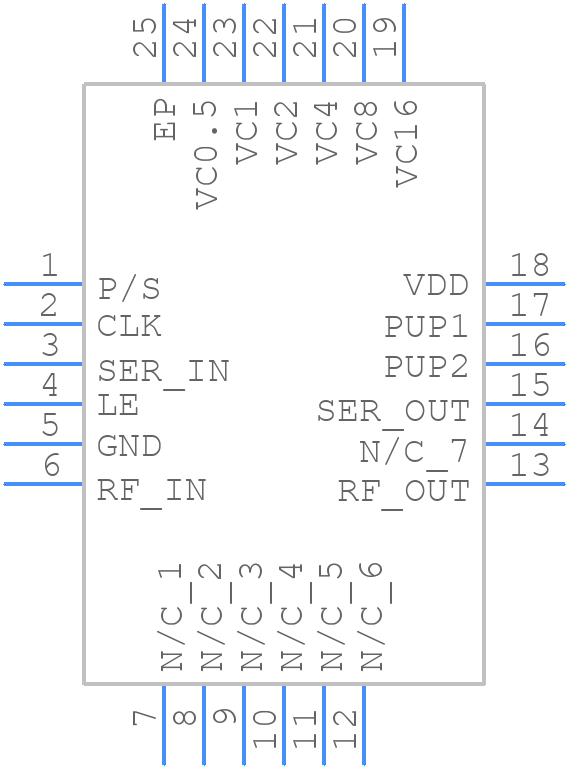

Use the download button to access the MAAD-000523-TR1000 schematic symbol, PCB footprint, and 3D model.
