MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
MACOM recommends attaching a heat sink to the device, and ensuring good airflow around the component. The thermal resistance of the device is 12°C/W, and the maximum junction temperature is 150°C.
MACOM recommends using a pi-network or a T-network for input and output matching, with component values dependent on the specific application and frequency range.
MACOM recommends using a voltage regulator to provide a stable voltage supply, and biasing the device with a voltage source and a current-limiting resistor to ensure stable operation.
The maximum safe operating area (SOA) for the MAAD-007082-000100 is defined by the maximum voltage, current, and power dissipation ratings, which are 50V, 1A, and 10W, respectively.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAD-007082-000100 Overview

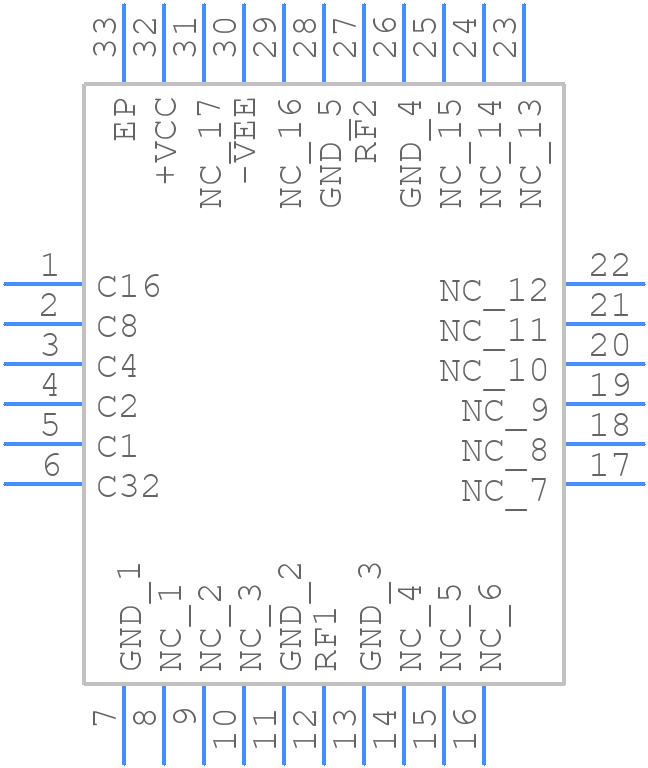

Use the download button to access the MAAD-007082-000100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAD-,
or try a keyword search, such as RF/Microwave Attenuators
