MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane or a heat sink.
To ensure reliable operation, follow the recommended operating conditions, including voltage, current, and temperature. Also, consider derating the device's performance at higher temperatures, and ensure proper thermal management.
The MAAD-011036-TR0500 is commonly used in high-frequency applications such as microwave radios, satellite communications, and radar systems. It's also used in test and measurement equipment, and in military and aerospace applications.
To troubleshoot oscillations or instability, check the PCB layout for proper grounding and decoupling, ensure the device is properly biased, and verify that the input and output impedances are matched. Also, check for any signs of overheating or electrical overstress.
MACOM recommends using a vector network analyzer (VNA) or a scalar network analyzer to characterize the device's frequency response, gain, and impedance. A signal generator and a spectrum analyzer can also be used to test the device's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAD-011036-TR0500 Overview

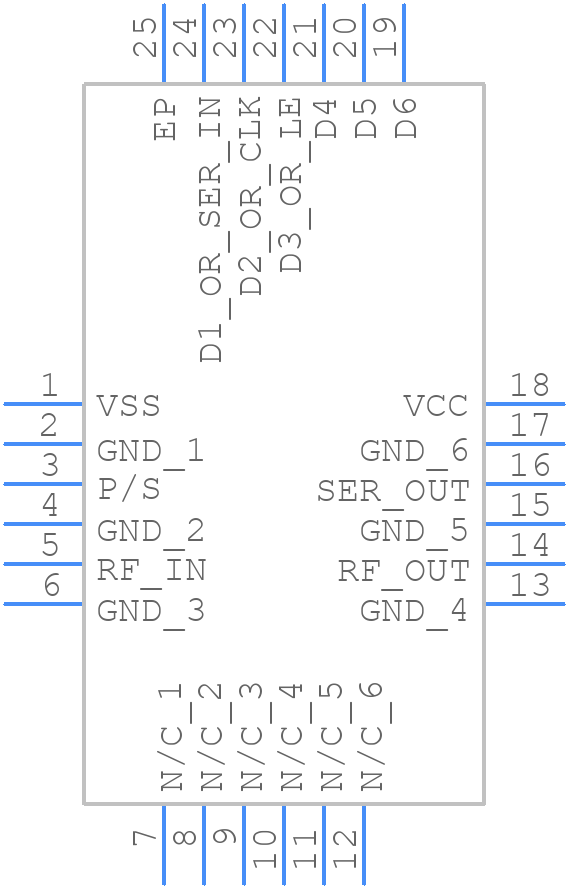

Use the download button to access the MAAD-011036-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAD-,
or try a keyword search, such as RF/Microwave Attenuators
