MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The MAADSS0016TR-3000 requires a bias tee or a DC block to provide the necessary DC voltage and current. The recommended bias voltage is 5V, and the current should be limited to 300mA. A bias resistor network can be used to set the desired bias point.
The MAADSS0016TR-3000 is rated for operation from -40°C to 85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to keep the junction temperature below 125°C for optimal reliability.
The MAADSS0016TR-3000 is an ESD-sensitive device and requires proper handling and protection. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment. During assembly, use ESD-protected tools and follow proper handling procedures.
The MAADSS0016TR-3000 is designed to handle RF input powers up to +20 dBm. However, the optimal input power range is between -10 dBm and +15 dBm for best performance and linearity.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAADSS0016TR-3000 Overview

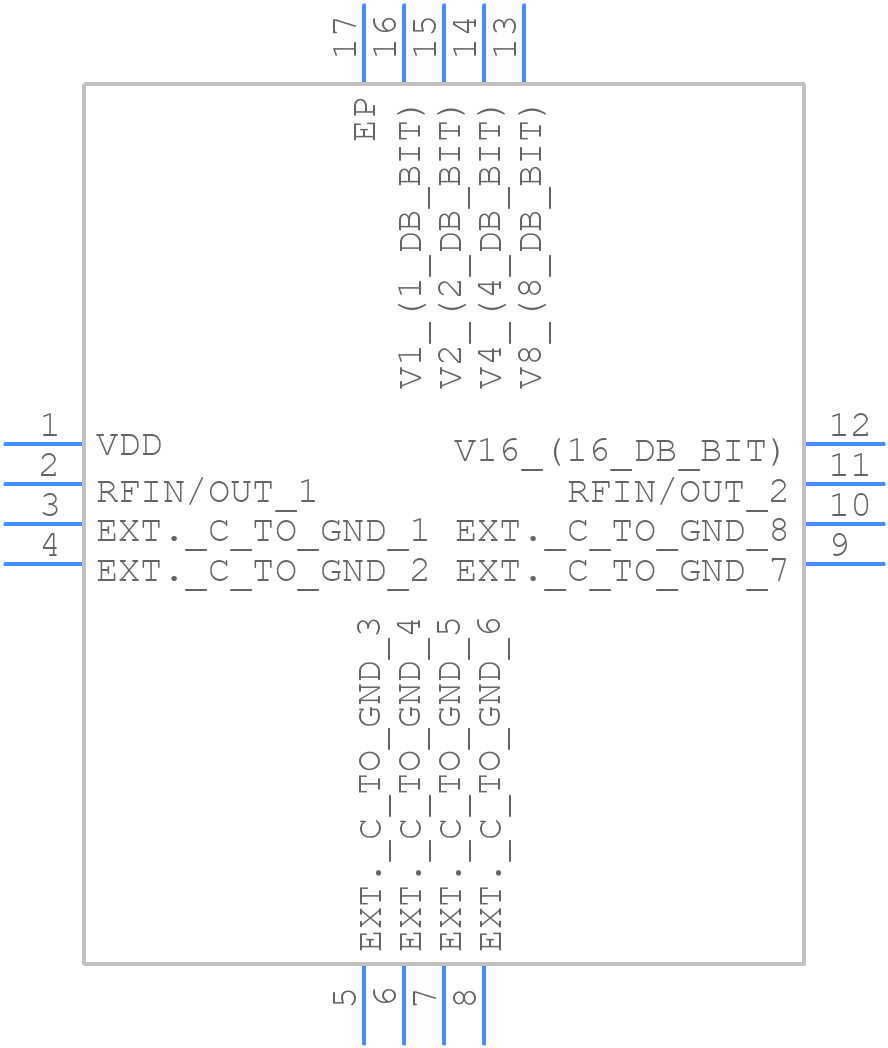

Use the download button to access the MAADSS0016TR-3000 schematic symbol, PCB footprint, and 3D model.
