MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to ensure efficient heat dissipation. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
The MAAL-010528-TR0500 requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V and a current of 100mA is recommended. Ensure the bias circuit is designed to provide a stable voltage and current.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor can be used to match the input impedance, while a shunt inductor and series capacitor can be used to match the output impedance.
The MAAL-010528-TR0500 is sensitive to ESD. Handle the device in an ESD-controlled environment, and use ESD-protective packaging and handling procedures. Ensure all equipment and tools are properly grounded, and use an ESD wrist strap or mat when handling the device.
Store the MAAL-010528-TR0500 in its original packaging in a dry, cool place. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures. Handle the device by the package body, avoiding touching the leads or die.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAL-010528-TR0500 Overview

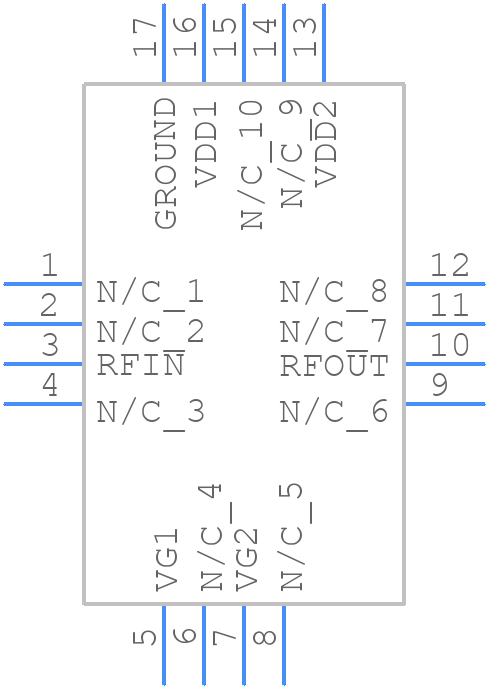

Use the download button to access the MAAL-010528-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
