MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
The MAAL-010706-TR3000 requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V to 12V is recommended, with a current limit of 100mA to 200mA.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A 50Ω system impedance is assumed, and a λ/4 transformer or a π-network can be used for matching.
The MAAL-010706-TR3000 is an ESD-sensitive device. Handle the device with ESD-protective equipment, and follow proper ESD-handling procedures to prevent damage.
The MAAL-010706-TR3000 should be stored at temperatures between -40°C to 100°C, and operated at temperatures between -20°C to 85°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAL-010706-TR3000 Overview

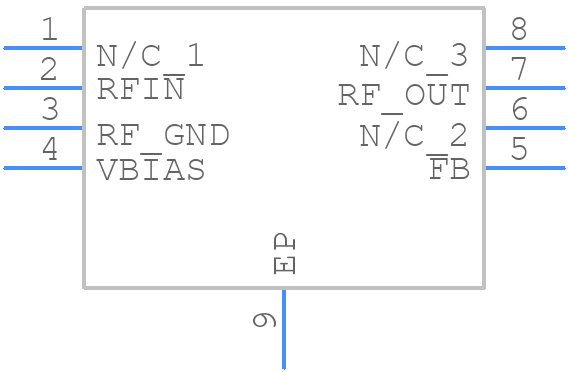

Use the download button to access the MAAL-010706-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
