MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The MAAL-011078-TR1000 requires a bias tee or a DC block to provide the necessary voltage and current. A bias voltage of 5V to 12V is recommended, and the current limit should be set to 100mA to 200mA.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor can be used to match the input impedance, while a shunt inductor and series capacitor can be used to match the output impedance.
The MAAL-011078-TR1000 is an ESD-sensitive device and requires proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, and ensure that all tools and equipment are grounded. Avoid touching the device's pins or exposed die.
Store the MAAL-011078-TR1000 in its original packaging or an anti-static bag, and avoid exposing it to extreme temperatures or humidity. During shipping, use a sturdy box with adequate cushioning to prevent mechanical stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAL-011078-TR1000 Overview

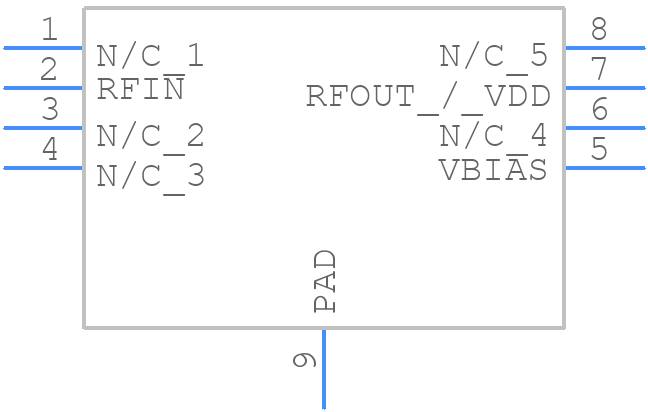

Use the download button to access the MAAL-011078-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
