MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The MAAL-011129-TR1000 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A 50Ω system impedance is recommended, and a π-network or T-network can be used for matching.
The MAAL-011129-TR1000 has internal ESD protection, but additional external protection is recommended. Use ESD protection diodes or a TVS diode at the input and output ports to prevent damage from electrostatic discharge.
The MAAL-011129-TR1000 is rated for operation from -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAL-011129-TR1000 Overview

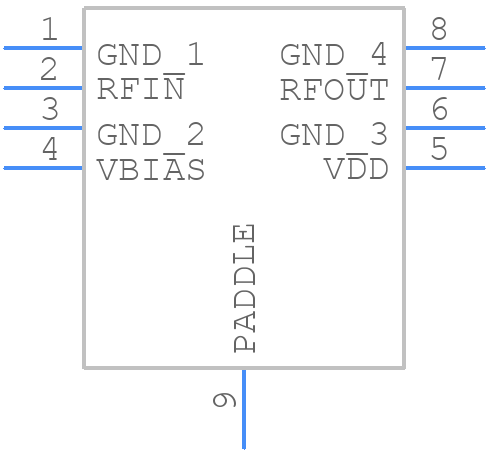

Use the download button to access the MAAL-011129-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
