- Part Number MAAL-011130-TR3000
- Manufacturer MACOM
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MAAL-011130-TR3000-1
- Released Date Dec 13, 2018
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAAL-011130-TR3000 Details
-
Manufacturer Part Number:
MAAL-011130-TR3000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DFN-8
-
Date Of Intro:
2017-10-03
-
Manufacturer:
MACOM
-
YTEOL:
7.17
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
19 dB
-
Input Power-Max (CW):
10 dBm
MAAL-011130-TR3000 Frequently Asked Questions (FAQs)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and a 50-ohm microstrip transmission line for the RF signal path. A detailed layout guide is available upon request.
-
MACOM recommends attaching the device to a heat sink or a thermal pad, and ensuring good airflow around the device. The maximum junction temperature is 150°C.
-
MACOM recommends a peak reflow temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. A detailed soldering profile is available upon request.
-
Yes, the MAAL-011130-TR3000 can be used in a push-pull configuration, but it's essential to ensure proper impedance matching and biasing to avoid oscillations.
-
The maximum input power rating for the MAAL-011130-TR3000 is 1 Watt. Exceeding this rating may cause permanent damage to the device.
Trust Checks
Community Provided
System Verified
Community Approved
MAAL-011130-TR3000 Overview

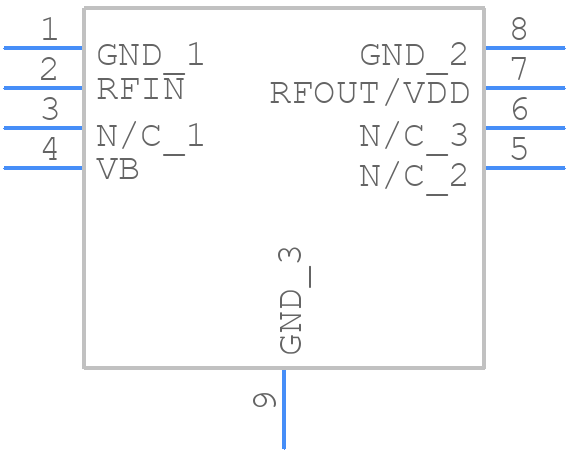

Use the download button to access the MAAL-011130-TR3000 schematic symbol, PCB footprint, and 3D model.
