MAAL-011141-TR0500 - MACOM

Description: RF Amplifier, DC - 28 GHz

Download MAAL-011141-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

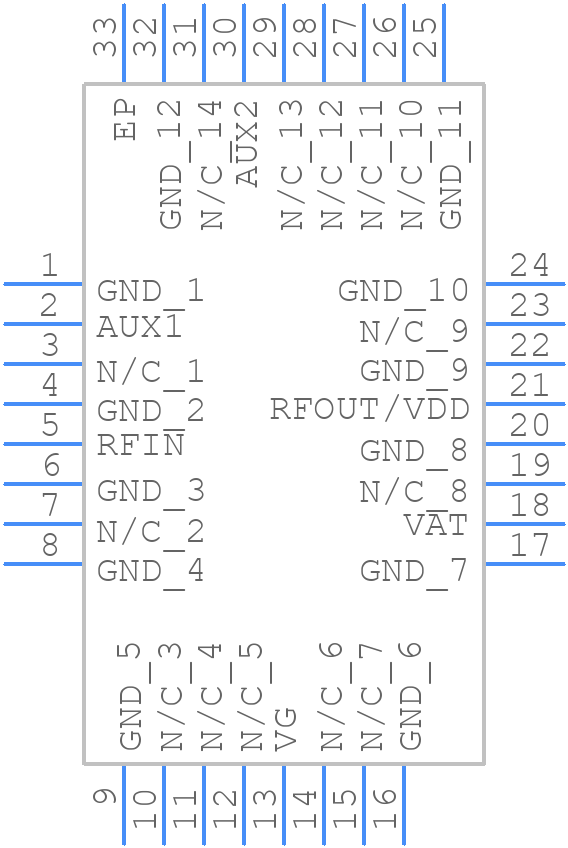

MAAL-011141-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead AQFN
click to zoom
3D Models
MAAL-011141-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - 32-Lead AQFN
click to zoom

MAAL-011141-TR0500 Details

  • Manufacturer Part Number:

    MAAL-011141-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AQFN-32

  • Date Of Intro:

    2018-04-27

  • Manufacturer:

    MACOM

  • YTEOL:

    8

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    28000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

MAAL-011141-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a 50-ohm microstrip transmission line for optimal performance. A well-designed PCB layout can help minimize signal loss and ensure reliable operation.
  • The MAAL-011141-TR0500 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a thermal pad or thermal tape, and provide adequate airflow around the device. Avoid overheating, as it can reduce the device's lifespan.
  • The MAAL-011141-TR0500 is designed for 50-ohm input and output impedance. Ensure that the input and output networks are matched to 50 ohms to achieve optimal performance and minimize signal reflections.
  • Yes, the MAAL-011141-TR0500 can be used in a push-pull configuration. However, ensure that the device is properly biased and that the input and output networks are designed to accommodate the push-pull configuration.
  • The maximum safe operating area (SOA) for the MAAL-011141-TR0500 is defined by the maximum voltage, current, and power dissipation ratings. Ensure that the device operates within these limits to prevent damage or premature failure.
