MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the top layer. Additionally, a thermal pad on the bottom of the package should be connected to a thermal management system, such as a heat sink or thermal interface material.
The MAAL-011188-TR1000 requires a bias voltage of 5V ± 0.5V and a bias current of 100 mA ± 10 mA. Ensure that the bias circuitry is designed to provide a stable voltage and current, and that the device is operated within the recommended operating conditions.
The MAAL-011188-TR1000 is rated for operation from -40°C to +85°C. However, for optimal performance and reliability, it is recommended to operate the device within a temperature range of -20°C to +70°C.
The MAAL-011188-TR1000 is an ESD-sensitive device. To prevent damage, handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the PCB design includes ESD protection circuitry, such as TVS diodes or ESD protection arrays, to protect the device from electrostatic discharge.
Store the MAAL-011188-TR1000 in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures. Handle the device by the package body only, and avoid touching the leads or electrical contacts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAL-011188-TR1000 Overview

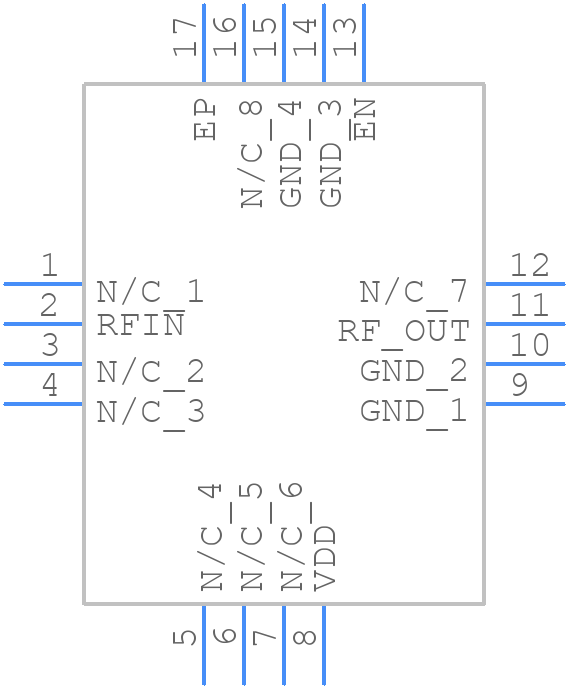

Use the download button to access the MAAL-011188-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
