A 4-layer PCB with a dedicated ground plane and a thermal via structure is recommended to ensure optimal thermal management and minimize electromagnetic interference.
Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure a good thermal interface between the amplifier and the heat sink. Also, maintain a maximum junction temperature of 150°C.
The maximum input power should not exceed 0 dBm to prevent damage to the amplifier. It's recommended to use an input attenuator or a limiter to prevent overdrive.
Yes, the MAAM-009320-TR3000 can be used in pulsed mode operation, but the pulse width and duty cycle should be carefully controlled to avoid overheating. Consult MACOM's application notes for guidance.
A voltage-controlled biasing scheme is recommended, with a voltage regulator to maintain a stable voltage supply. Consult the datasheet for specific biasing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAM-009320-TR3000 Overview

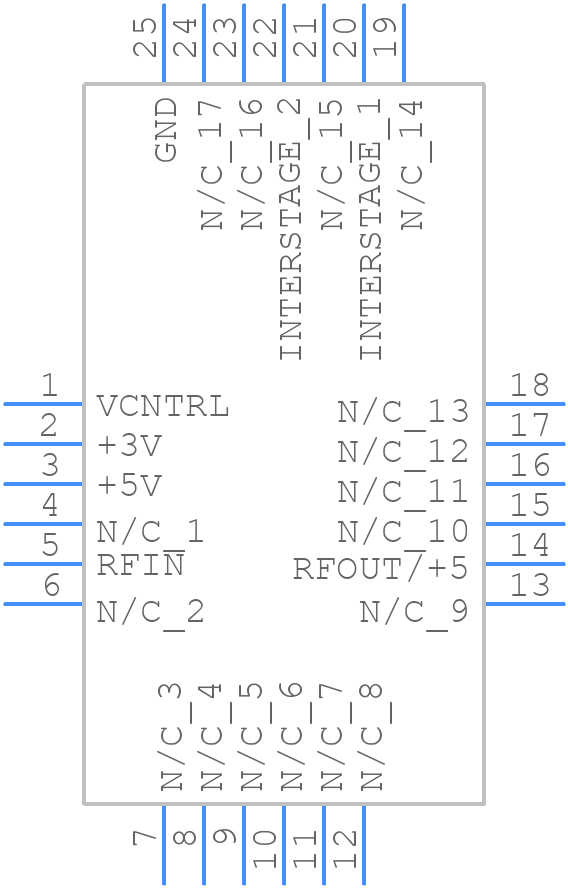

Use the download button to access the MAAM-009320-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAM-,
or try a keyword search, such as RF/Microwave Amplifiers
