MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
MACOM provides a recommended PCB layout and impedance matching network in the application note AN-2171. Engineers should follow these guidelines to ensure optimal impedance matching and minimize signal reflections.
The maximum operating temperature for the MAAM-010237-TR3000 is 125°C. However, MACOM recommends operating the device at a temperature below 100°C to ensure optimal performance and reliability.
While the MAAM-010237-TR3000 is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and design considerations to ensure optimal performance.
MACOM recommends a voltage-controlled biasing scheme, with a voltage regulator and a resistor network to set the bias voltage and current. The application note AN-2171 provides more detailed information on biasing the MAAM-010237-TR3000.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAM-010237-TR3000 Overview

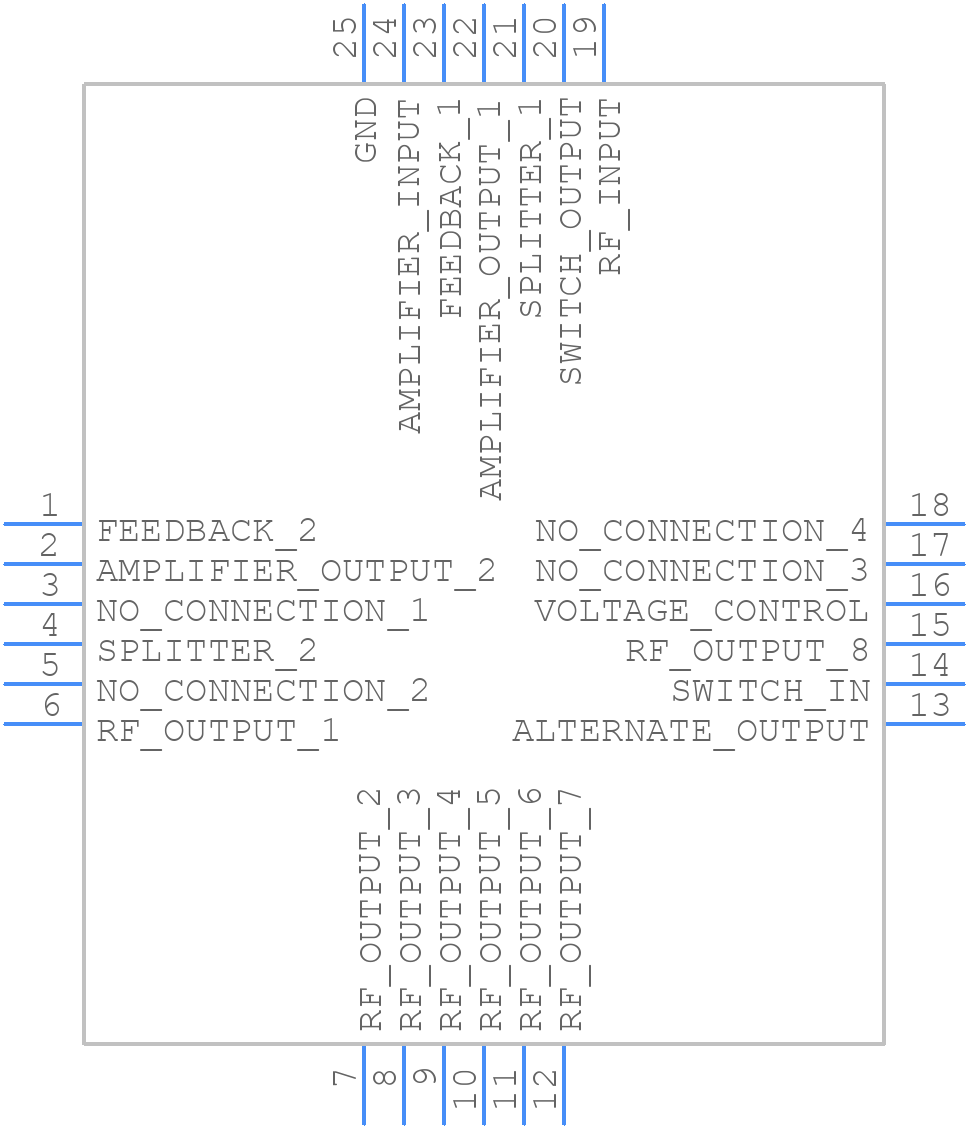

Use the download button to access the MAAM-010237-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAM-,
or try a keyword search, such as RF/Microwave Splitter/Combiners
