MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat sinking.
MACOM provides a recommended PCB layout and impedance matching circuit in the application note AN-2171. It's essential to follow these guidelines to achieve optimal performance and minimize reflections.
The maximum operating temperature for the MAAM-010333-TR3000 is 125°C. However, it's recommended to operate the device at a temperature below 100°C to ensure optimal performance and reliability.
Yes, the MAAM-010333-TR3000 can be used in a push-pull configuration. However, it's essential to ensure that the device is properly biased and matched to avoid uneven current distribution and potential device damage.
MACOM recommends a single-supply biasing scheme with a voltage regulator to ensure stable operation. The recommended bias voltage is 5V, and the quiescent current should be set to around 100mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAM-010333-TR3000 Overview

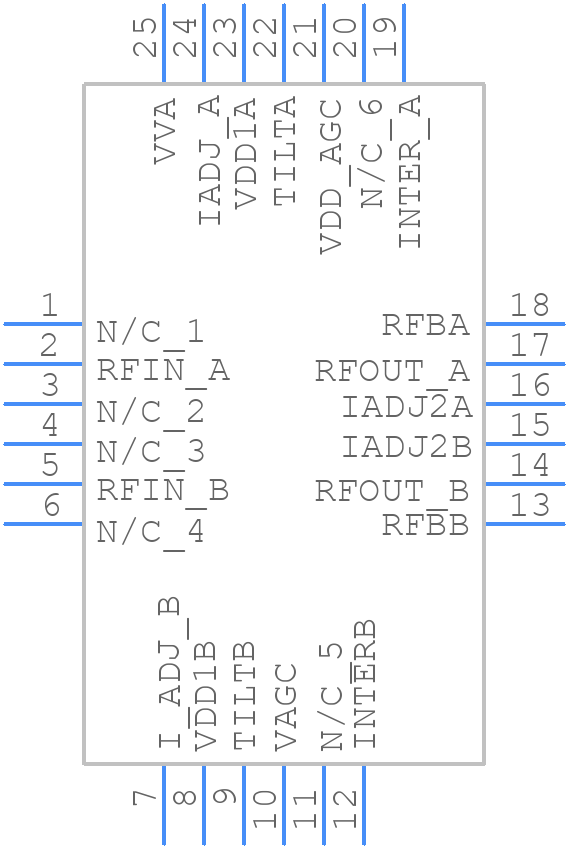

Use the download button to access the MAAM-010333-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAM-,
or try a keyword search, such as RF/Microwave Amplifiers
