MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. The device should be placed near the edge of the board to minimize signal loss.
The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
The recommended operating temperature range for the MAAM-011100-TR1000 is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.
The MAAM-011100-TR1000 is an ESD-sensitive device. Handle the device with ESD-protective equipment, and ensure that the PCB design includes ESD protection circuits to prevent damage during assembly and operation.
Store the MAAM-011100-TR1000 in its original packaging, in a dry, cool place. Handle the device with ESD-protective equipment, and avoid touching the device's pins or exposed die.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAM-011100-TR1000 Overview

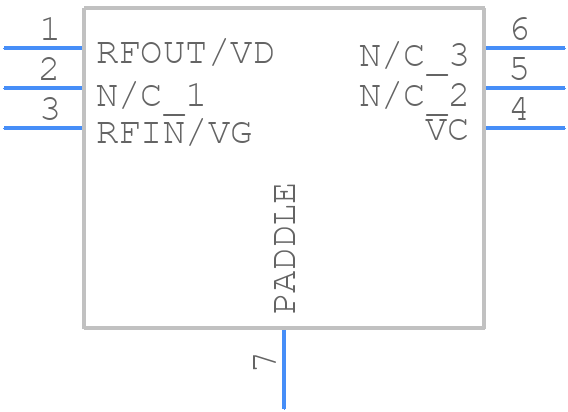

Use the download button to access the MAAM-011100-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAM-,
or try a keyword search, such as RF/Microwave Amplifiers
