MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. The device should be placed near the edge of the board to minimize signal loss.
The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
The recommended operating temperature range for the MAAM-011101-TR1000 is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.
MACOM recommends following standard ESD handling procedures, including using an ESD wrist strap, ESD mat, and ESD-safe packaging. The device should be handled in a static-free environment to prevent damage.
The device should be stored in a dry, cool place, away from direct sunlight and moisture. The device should be shipped in its original packaging, and should not be exposed to extreme temperatures or humidity during transportation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAM-011101-TR1000 Overview

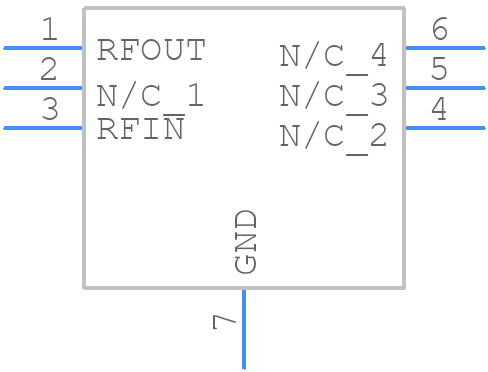

Use the download button to access the MAAM-011101-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAM-,
or try a keyword search, such as RF/Microwave Amplifiers
