MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to ensure efficient heat dissipation. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
The MAAM-011290-TR0500 requires a bias voltage of 5V and a bias current of 200mA. Ensure the bias circuitry is designed to provide a stable voltage and current to the device.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A 50Ω system impedance is assumed. Consult the application note for specific matching network designs.
The device has a maximum junction temperature of 150°C. Ensure the device is operated within the recommended temperature range, and consider using thermal management techniques such as heat sinks or thermal interfaces to maintain a safe operating temperature.
The MAAM-011290-TR0500 is an ESD-sensitive device. Handle the device with ESD-protective equipment, and follow proper ESD handling procedures to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAM-011290-TR0500 Overview

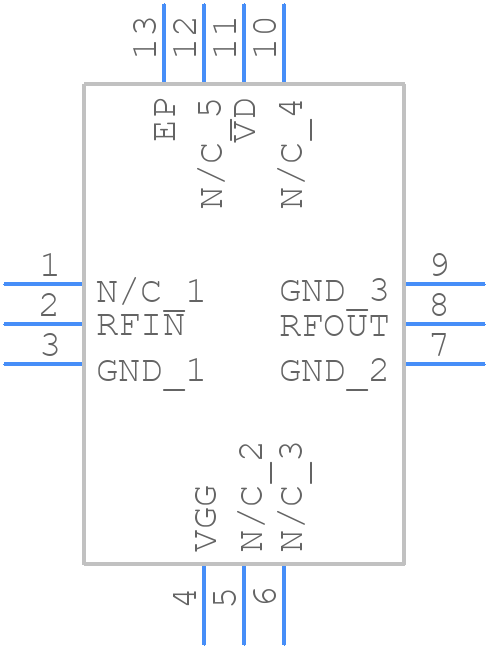

Use the download button to access the MAAM-011290-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAM-,
or try a keyword search, such as RF/Microwave Amplifiers
