MACOM provides a recommended PCB layout in their application note AN-60-015, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic inductance and ensure optimal performance.
The MAAP-010150-TR0500 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Additionally, MACOM recommends using a heat sink or thermal interface material to further reduce thermal resistance.
The MAAP-010150-TR0500 is rated for operation from -40°C to +85°C, but derating is required for temperatures above +70°C. Consult the datasheet for specific derating guidelines.
Yes, the MAAP-010150-TR0500 can be used in a push-pull configuration, but it's essential to ensure that the devices are properly matched and biased to avoid uneven current sharing and potential oscillations.
MACOM recommends using a resistive biasing scheme, with a base resistor value between 1 kΩ to 10 kΩ, depending on the specific application requirements. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAP-010150-TR0500 Overview

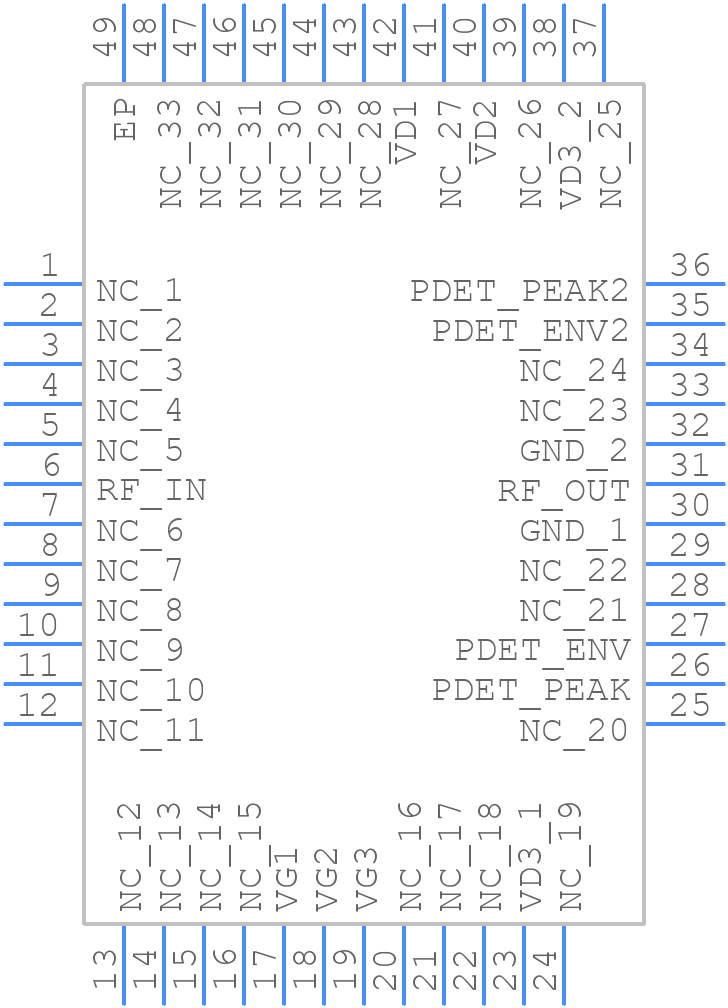

Use the download button to access the MAAP-010150-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAP-,
or try a keyword search, such as RF/Microwave Amplifiers
