MAAP-011202 - MACOM

Description: RF & MW POWER AMPLIFIER

Download MAAP-011202 Model

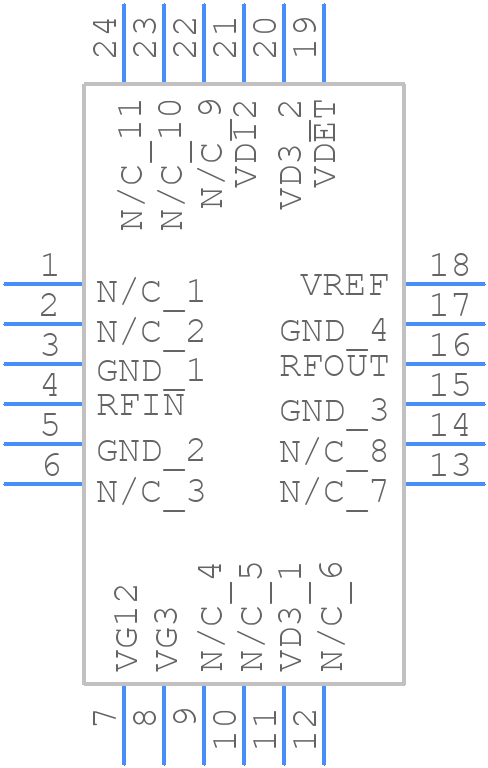

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAAP-011202 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Lead-Free 5 mm 24-Lead PQFN
click to zoom
3D Models
MAAP-011202 - MACOM  - 3D model - Quad Flat No-Lead - Lead-Free 5 mm 24-Lead PQFN
click to zoom

MAAP-011202 Details

  • Manufacturer Part Number:

    MAAP-011202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Date Of Intro:

    2016-05-09

  • Manufacturer:

    MACOM

  • YTEOL:

    7.29

  • Construction:

    COMPONENT

  • Gain:

    27 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    15400 MHz

  • Operating Frequency-Min:

    12700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.2SQ,25

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.92

MAAP-011202 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • MACOM provides a reference design and application notes for input and output matching networks. Engineers can use simulation tools like ADS or AWR to optimize the matching networks for their specific application.
  • The maximum safe operating temperature for the MAAP-011202 is 150°C. However, MACOM recommends operating the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
  • Yes, the MAAP-011202 can be used in a push-pull configuration to achieve higher power output. However, engineers should ensure proper phasing and biasing of the devices to avoid uneven stress and reduce the risk of device failure.
  • MACOM recommends a voltage-controlled biasing scheme with a voltage regulator and a current sense resistor to ensure stable operation and prevent thermal runaway.
