Part Image

MAAP-011233-TR0500 - MACOM

Description: POWER AMPLIFIER 4W 28.5 - 31 GHZ

Download MAAP-011233-TR0500 Model

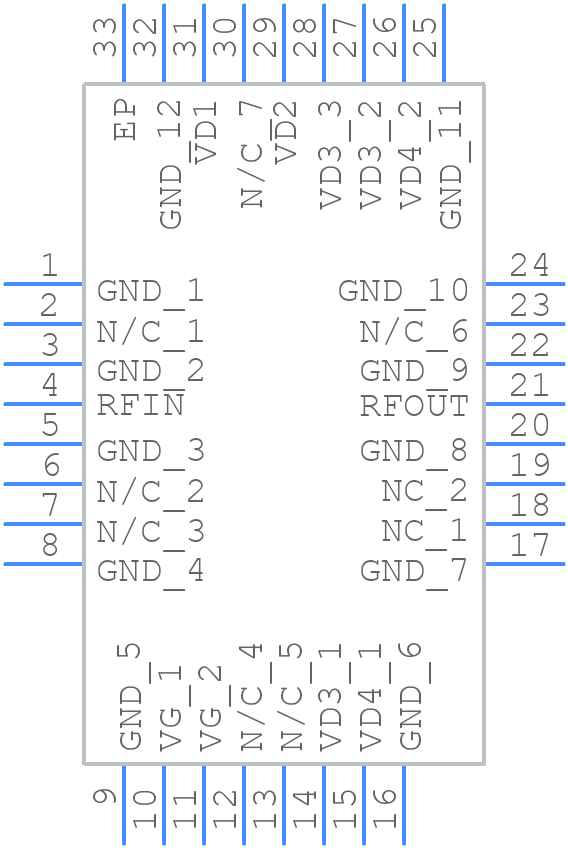

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAAP-011233-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 5 mm 32-Lead AQFN Package
click to zoom
3D Models
MAAP-011233-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - 5 mm 32-Lead AQFN Package
click to zoom

MAAP-011233-TR0500 Details

  • Manufacturer Part Number:

    MAAP-011233-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Date Of Intro:

    2018-06-18

  • Manufacturer:

    MACOM

  • YTEOL:

    8.26

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Input Power-Max (CW):

    14 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    31000 MHz

  • Operating Frequency-Min:

    28500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.92

MAAP-011233-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • The device requires a bias voltage of 5V and a current of 350mA. A voltage regulator and a current limiter should be used to ensure stable biasing. Additionally, a decoupling capacitor should be placed close to the device to filter out noise.
  • MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A pi-network or a T-network can be used for matching, and the component values should be optimized using simulation software or measurement data.
  • The device is sensitive to ESD, and proper handling and storage procedures should be followed to prevent damage. Anti-static wrist straps, mats, and packaging should be used when handling the device.
  • The recommended operating temperature range for the MAAP-011233-TR0500 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
