MAAP-011250-TR0500 - MACOM

Description: RF Amplifier Power Amplifier,27.5-30.0GHz,4W,5mmAQFN

Download MAAP-011250-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

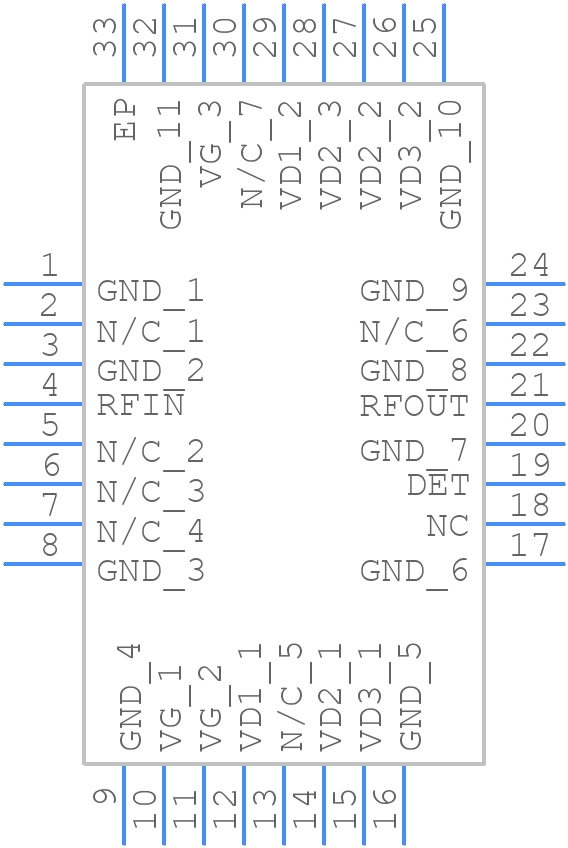

MAAP-011250-TR0500 - MACOM - PCB symbol
click to zoom
PCB Footprints
MAAP-011250-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-LEAD AGFN-D
click to zoom
3D Models
MAAP-011250-TR0500 - MACOM - 3D model - Quad Flat No-Lead - 32-LEAD AGFN-D
click to zoom

MAAP-011250-TR0500 Details

  • Manufacturer Part Number:

    MAAP-011250-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Date Of Intro:

    2019-02-07

  • Manufacturer:

    MACOM

  • YTEOL:

    8.26

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    21 dB

  • Input Power-Max (CW):

    17.5 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    30000 MHz

  • Operating Frequency-Min:

    27500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    6 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.43

MAAP-011250-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed application note is available from MACOM for reference.
  • The MAAP-011250-TR0500 requires a bias voltage of 5V and a bias current of 250mA. A voltage regulator and a current limiting resistor are recommended to ensure stable biasing.
  • The MAAP-011250-TR0500 can handle up to 10dBm of input power without damage. Exceeding this limit may result in reduced performance or damage to the amplifier.
  • Common issues can be troubleshooted by checking the PCB layout, biasing, and input/output matching. MACOM provides a troubleshooting guide and application notes to help identify and resolve common issues.
  • Yes, the MAAP-011250-TR0500 is designed to meet the requirements of high-reliability applications. MACOM provides a range of screening options and qualification data to support these applications.
