MAAP-011298-TR0500 - MACOM

Description: RF Amplifier 27 GHz 31.5 GHz 2.3 Watt Power Amplifier

Download MAAP-011298-TR0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

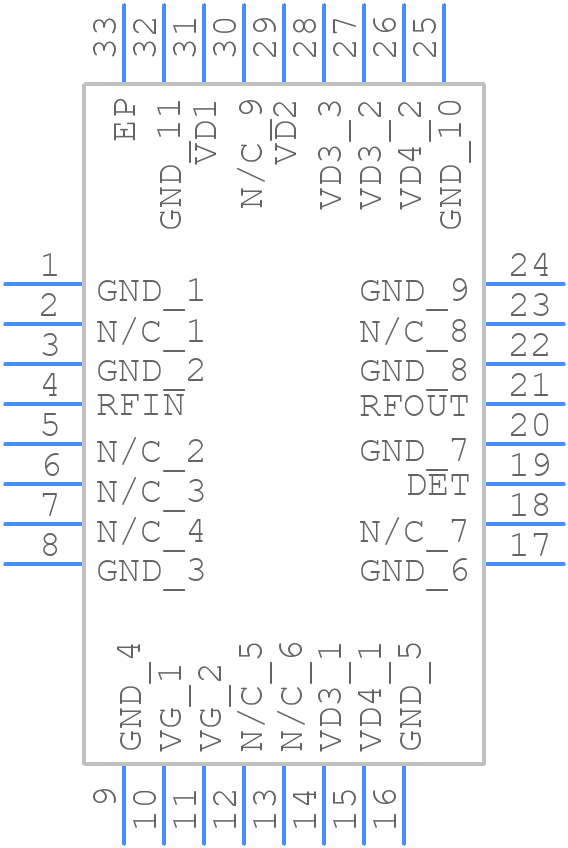

Symbol
MAAP-011298-TR0500 - MACOM - PCB symbol
click to zoom
PCB Footprints
MAAP-011298-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead AQFN
click to zoom
3D Models
MAAP-011298-TR0500 - MACOM - 3D model - Quad Flat No-Lead - 32-Lead AQFN
click to zoom

MAAP-011298-TR0500 Details

  • Manufacturer Part Number:

    MAAP-011298-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Manufacturer:

    MACOM

  • YTEOL:

    8.1

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Input Power-Max (CW):

    15 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    31500 MHz

  • Operating Frequency-Min:

    27000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    6 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.92

MAAP-011298-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package is also recommended for heat sinking.
  • The MAAP-011298-TR0500 requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V to 12V is recommended, with a current limit of 100mA to 200mA.
  • The MAAP-011298-TR0500 is rated for operation from -40°C to +85°C, with a storage temperature range of -55°C to +125°C.
  • MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the MAAP-011298-TR0500 from electrostatic discharge.
  • MACOM recommends a soldering profile with a peak temperature of 260°C to 280°C, and a dwell time of 10-30 seconds. A nitrogen atmosphere is also recommended to reduce oxidation.
