Part Image

MAAP-011313-TR0500 - MACOM

Description: RF Amplifier Power Amplifier, 13.5-15 GHz, 4W, 5mmQFN

Download MAAP-011313-TR0500 Model

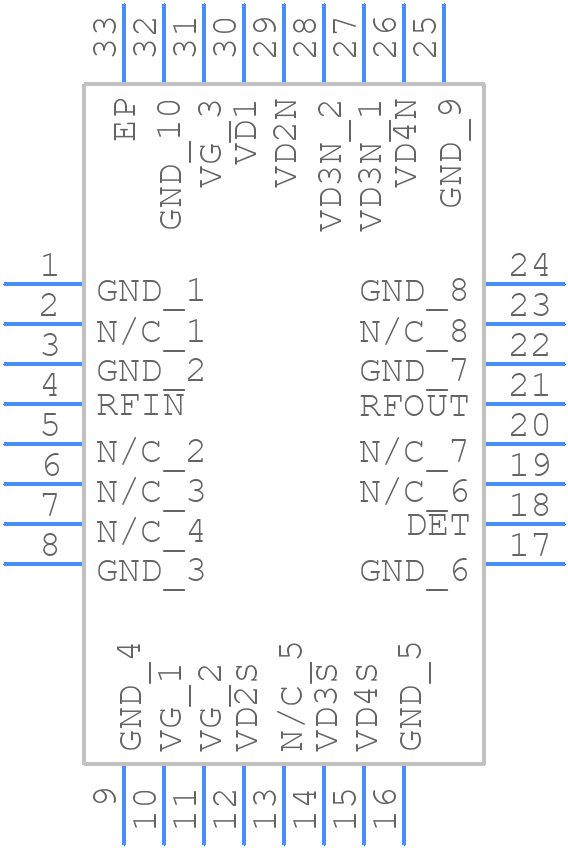

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAAP-011313-TR0500 - MACOM PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead AQFN
click to zoom
3D Models
MAAP-011313-TR0500 - MACOM  - 3D model - Quad Flat No-Lead - 32-Lead AQFN
click to zoom

MAAP-011313-TR0500 Details

  • Manufacturer Part Number:

    MAAP-011313-TR0500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Date Of Intro:

    2020-07-15

  • Manufacturer:

    MACOM

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    34 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    13500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    6 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.43

MAAP-011313-TR0500 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • The MAAP-011313-TR0500 requires a bias tee or a DC block to provide the necessary DC voltage and current. Ensure the bias voltage is within the recommended range (typically 5-12V) and the current is limited to the recommended maximum (typically 100-200mA).
  • The recommended input and output matching network depends on the specific application and frequency range. However, a general guideline is to use a low-pass filter or a band-pass filter to match the device's input and output impedance to the system's impedance (typically 50 ohms).
  • Handle the device with care, using anti-static wrist straps, mats, and packaging. Ensure the PCB and assembly process follow ESD-safe practices. Consider adding ESD protection devices, such as TVS diodes, to the circuit.
  • The MAAP-011313-TR0500 is typically specified to operate from -40°C to 85°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure the device is operated within the recommended temperature range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAAP-011313-TR0500 Overview

Use the download button to access the MAAP-011313-TR0500 schematic symbol, PCB footprint, and 3D model.
