A 4-layer PCB with a dedicated ground plane, and a thermal via array under the device to dissipate heat, is recommended. A low-loss, high-frequency laminate such as Rogers 4350 or equivalent is also suggested.
Use a low-ESR capacitor (e.g., 100nF) between the drain and ground pins, and a high-frequency choke or ferrite bead in series with the drain supply to prevent oscillations.
The maximum junction temperature (Tj) is 150°C. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.
Yes, but it's essential to ensure proper phasing and impedance matching between the two amplifiers to maintain stability and prevent oscillations.
A λ/4 transformer or a low-pass matching network with a series inductor and shunt capacitor can be used for input matching. For output matching, a λ/4 transformer or a high-pass matching network with a series capacitor and shunt inductor is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAP-011317-TR0500 Overview

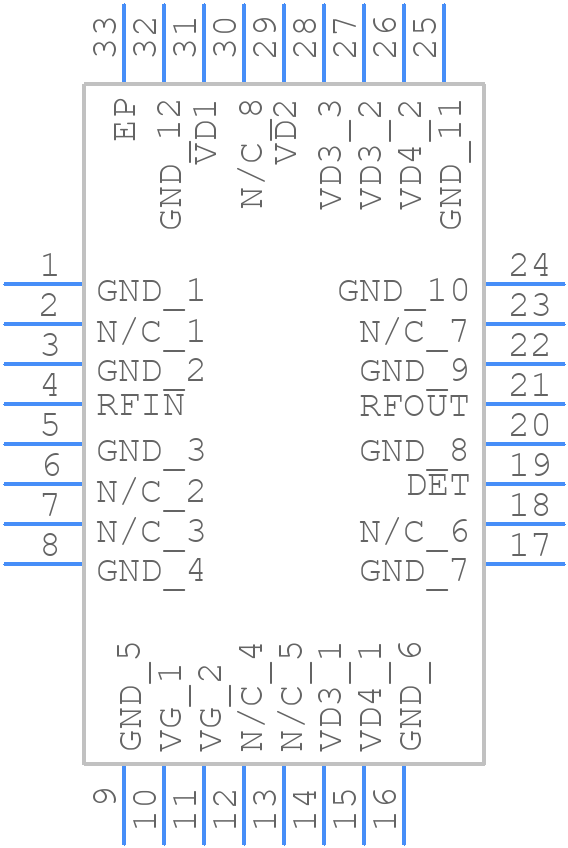

Use the download button to access the MAAP-011317-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAP-,
or try a keyword search, such as RF/Microwave Amplifiers
