MACOM provides a recommended PCB layout in their application note AN-60-015, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance of the MAAP-011324-TR0500.
The MAAP-011324-TR0500 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
The MAAP-011324-TR0500 is rated for operation from -40°C to +85°C, but it's recommended to derate the power dissipation at higher temperatures to ensure reliability and prevent thermal runaway.
Yes, the MAAP-011324-TR0500 can be used in a push-pull configuration, but it's essential to ensure that the input signals are properly balanced and that the output stages are properly biased to prevent uneven current distribution.
MACOM provides a recommended input and output matching network in their datasheet, which includes a pi-network topology for input matching and a series inductor for output matching. However, the optimal matching network may vary depending on the specific application and frequency range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAP-011324-TR0500 Overview

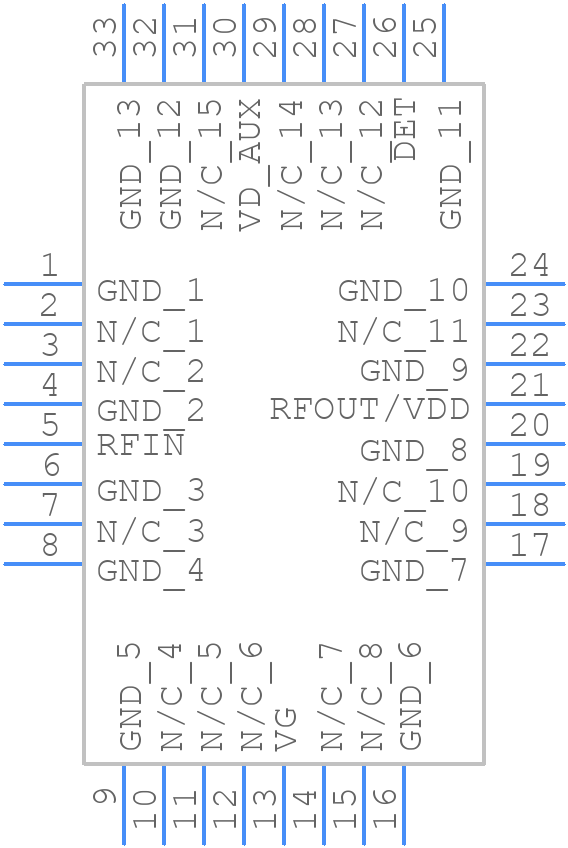

Use the download button to access the MAAP-011324-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAP-,
or try a keyword search, such as RF/Microwave Amplifiers
