MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
The device requires a bias tee or a DC block to provide the correct voltage and current. A bias voltage of 5V and a current of 100mA is recommended. The bias circuit should be designed to provide a low impedance path to ground.
MACOM recommends using a conjugate match at the input and output of the device. A series inductor and shunt capacitor can be used to match the input and output impedance to 50 ohms. The values of the inductor and capacitor will depend on the specific application and frequency of operation.
The device is sensitive to ESD and requires proper handling and storage procedures to prevent damage. MACOM recommends using an ESD wrist strap or mat, and storing the devices in an anti-static bag or container.
The recommended operating temperature range for the MAAT-010521-L1TR05 is -40°C to 85°C. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAT-010521-L1TR05 Overview

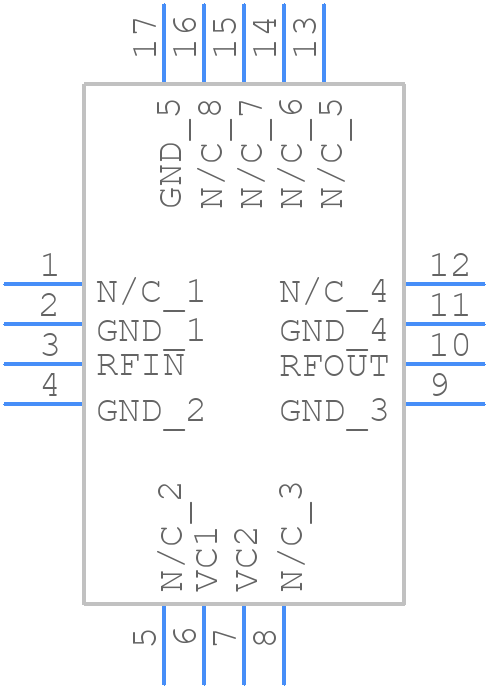

Use the download button to access the MAAT-010521-L1TR05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAT-,
or try a keyword search, such as RF/Microwave Attenuators
