MAATCC0007 - MACOM

Description: Attenuators Attenuator,Digital,Pb-FREE EQUIVALENT OF RF Attenuators 31dB 0 Hz ~ 2 GHz 50 Ohms 16-SOIC (0.295", 7.50mm Width)

Download MAATCC0007 Model

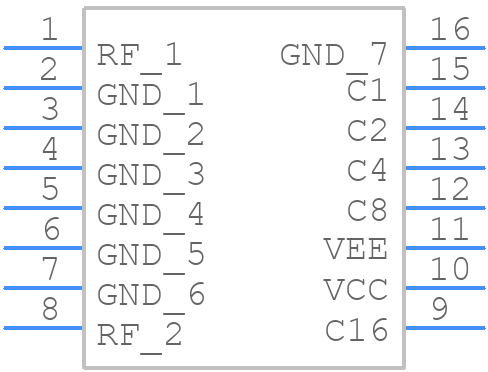

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAATCC0007 - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - SOW-16†
click to zoom
3D Models
MAATCC0007 - MACOM  - 3D model - Small Outline Packages - SOW-16†
click to zoom

MAATCC0007 Details

  • Manufacturer Part Number:

    MAATCC0007

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOW-16

  • Manufacturer:

    MACOM

  • YTEOL:

    6

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.98 dBm

  • Insertion Loss-Max:

    3.2 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.8

MAATCC0007 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed application note is available from MACOM.
  • The MAATCC0007 requires a bias voltage of 5V and a bias current of 200mA. A voltage regulator and a current limiting resistor are recommended to ensure stable biasing.
  • The MAATCC0007 can handle up to 30 dBm of input power. Exceeding this limit may result in reduced performance or damage to the device.
  • Common issues can be troubleshooted by checking the bias voltage and current, ensuring proper PCB layout and grounding, and verifying the input and output impedance matching.
  • Yes, the MAATCC0007 is designed and tested to meet the requirements of high-reliability applications, including aerospace and defense. MACOM provides additional screening and testing options for these applications.
