MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A minimum of 10 mils of clearance around the device is recommended to minimize electromagnetic interference.
MACOM recommends attaching a heat sink to the device, and using thermal interface material to fill any gaps. The heat sink should be designed to dissipate heat efficiently, and the device should be mounted in a way that minimizes thermal resistance.
MACOM recommends a single-supply biasing scheme with a voltage regulator to ensure stable operation. The recommended bias voltage is 5V, and the recommended bias current is 100mA.
Common issues with the MAATCC0008 include overheating, oscillation, and poor RF performance. To troubleshoot, check the PCB layout, thermal management, and biasing scheme. Ensure that the device is properly soldered and that the RF signal path is well-matched.
MACOM recommends storing the MAATCC0008 in a dry, cool place, away from direct sunlight and moisture. The device should be handled with anti-static precautions, and should not be exposed to mechanical stress or vibration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAATCC0008 Overview

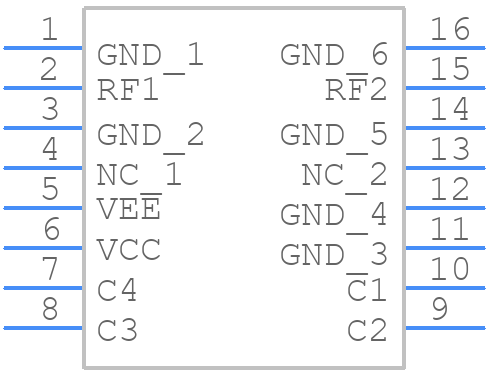

Use the download button to access the MAATCC0008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAATC,
or try a keyword search, such as RF/Microwave Attenuators
