MAATSS0015TR - MACOM

Description: Attenuators DC-2GHz 4 Bit 1dB steps to 15dB

Download MAATSS0015TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

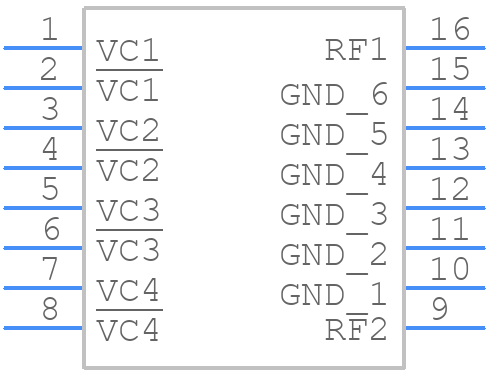

MAATSS0015TR - MACOM - PCB symbol
click to zoom
PCB Footprints
MAATSS0015TR - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - Lead-Free SOIC-16
click to zoom
3D Models
MAATSS0015TR - MACOM - 3D model - Small Outline Packages - Lead-Free SOIC-16
click to zoom

MAATSS0015TR Details

  • Manufacturer Part Number:

    MAATSS0015TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MS-012AC, SOIC-16

  • Manufacturer:

    MACOM

  • YTEOL:

    6.4

  • Additional Feature:

    HIGH RELIABILITY

  • Attenuation-Nom:

    15 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    34 dBm

  • Insertion Loss-Max:

    1.8 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.25

  • Power Supplies:

    -5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

MAATSS0015TR Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. The device should be placed near the edge of the board to minimize signal loss.
  • The MAATSS0015TR requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
  • The MAATSS0015TR can handle up to 2W of input power. Exceeding this limit may result in device damage or degradation.
  • Use a signal generator and spectrum analyzer to verify the input signal and output response. Check the bias voltage and current, and ensure the device is properly connected to the PCB. Consult the datasheet and application notes for additional troubleshooting guidance.
  • Yes, the MAATSS0015TR can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout consideration to ensure proper device matching and thermal management.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAATSS0015TR Overview

Use the download button to access the MAATSS0015TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAATS, or try a keyword search, such as RF/Microwave Attenuators
