MACOM recommends a 4-layer PCB with a solid ground plane, and a 50-ohm microstrip transmission line for optimal performance. A reference design is available upon request.
MACOM recommends attaching the device to a heat sink or a thermal pad, and ensuring good airflow around the device. The maximum junction temperature is 150°C.
MACOM provides a recommended matching network in the application note AN-2171. The network consists of a series inductor and shunt capacitor on the input, and a series resistor and shunt capacitor on the output.
Yes, the MAAV-007941-TR3000 can be used in a push-pull configuration. However, MACOM recommends using a balun or a transformer to ensure proper impedance matching and to minimize even-mode noise.
The maximum safe operating voltage for the MAAV-007941-TR3000 is 12V. Exceeding this voltage may result in permanent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAV-007941-TR3000 Overview

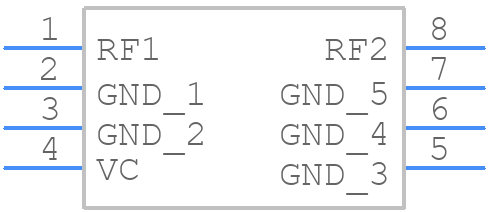

Use the download button to access the MAAV-007941-TR3000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAV-,
or try a keyword search, such as RF/Microwave Attenuators
