MAB6HBLACK - Hirschmann

Description: panel-mounted socket for PCBs; not shielded; plug-in direction parallel to the PCB, recommended board thickness 1.5 mm; additionaly fixing with screws (DIN 40081)

Download MAB6HBLACK Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MAB6HBLACK model

Email notifications will be applied after download.

Send part feedback

Symbol

MAB6HBLACK - Hirschmann - PCB symbol

PCB Footprints

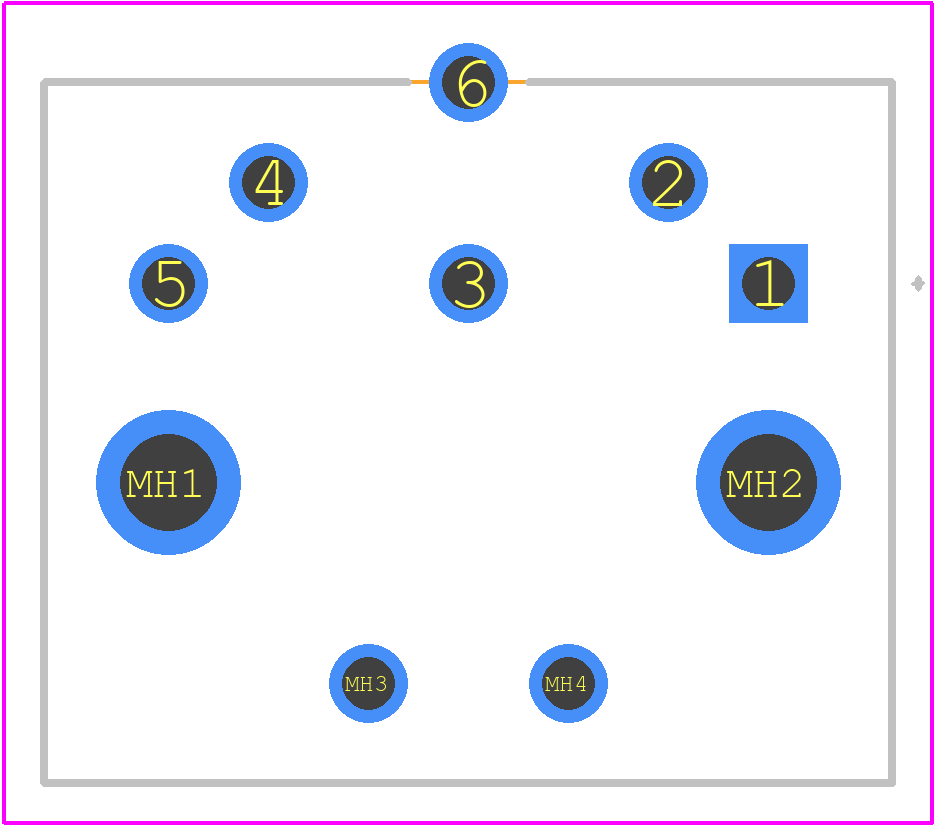

MAB6HBLACK - Hirschmann PCB footprint - Other - Other - MAB6HBLACK-2

3D Models

MAB6HBLACK - Hirschmann - 3D model - Other - MAB6HBLACK-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAB6HBLACK
Part Number MAB6HBLACK
Manufacturer Hirschmann
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - MAB6HBLACK-2
Released Date Oct 5, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAB6HBLACK Details

Manufacturer Part Number:
MAB6HBLACK
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Hirschmann Electronics GmbH & Co Kg
Body/Shell Style:
SOCKET
Connector Type:
DIN CONNECTOR
Contact Gender:
FEMALE
DIN Conformance:
YES
DIN Standard:
40081
EMI Shielded:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED
Termination Type:
SOLDER
Total Number of Contacts:
6

Trust Checks

Expert Contribution

System Verified

Community Approved

MAB6HBLACK Overview

Use the download button to access the MAB6HBLACK schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MAB6H, or try a keyword search, such as DIN Connectors
