MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The device requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias circuit with a voltage regulator and a current limiter is recommended to ensure stable operation.
The MABA-007748-CT1160 is rated for operation from -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to keep the junction temperature below 125°C.
MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the device from electrostatic discharge.
MACOM recommends a reflow soldering process with a peak temperature of 260°C for a maximum of 30 seconds. Hand soldering is not recommended due to the device's sensitive nature.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MABA-007748-CT1160 Overview

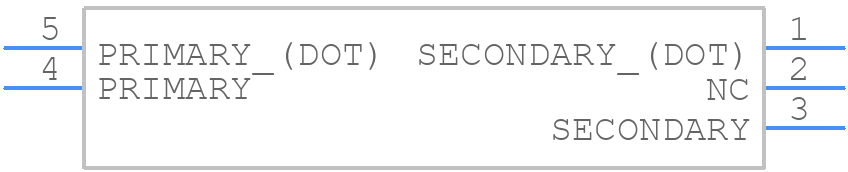

Use the download button to access the MABA-007748-CT1160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MABA-,
or try a keyword search, such as RF Transformers
