MABA-010129-CT4A40 - MACOM

Description: Audio Transformers / Signal Transformers 50-1200MHz Imp. 1:4 50 & 75 ohm

Download MABA-010129-CT4A40 Model

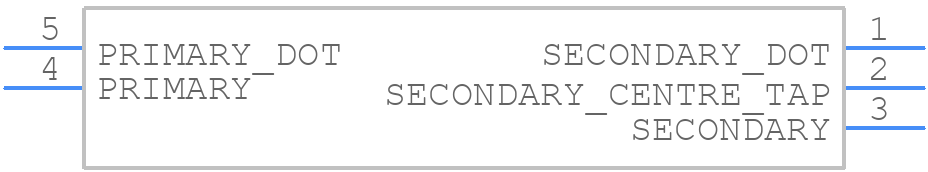

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MABA-010129-CT4A40 - MACOM PCB footprint - Other - Other - MABA-010129-CT4A40-3
click to zoom
3D Models
MABA-010129-CT4A40 - MACOM  - 3D model - Other - MABA-010129-CT4A40-3
click to zoom

MABA-010129-CT4A40 Details

  • Manufacturer Part Number:

    MABA-010129-CT4A40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT DIM. INCLUDES TERMINALS ALSO; CENTER TAPPED SECONDARY; IMPEDANCE RATIO IS 1:4

  • Cut-off Frequency-Max:

    1200 MHz

  • Cut-off Frequency-Min:

    5 MHz

  • Height:

    3.61 mm

  • Insertion Loss:

    2 dB

  • Length:

    4.27 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2.69 mm

MABA-010129-CT4A40 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • The device requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V and a current of 100mA is recommended. The bias circuit should be designed to provide a low impedance path to ground.
  • MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor can be used to match the input and output impedance to 50 ohms.
  • The device is sensitive to ESD damage. Handling the device with an ESD wrist strap or mat, and using ESD-safe packaging and storage is recommended. Anti-static precautions should be taken during assembly and testing.
  • The recommended operating temperature range for the MABA-010129-CT4A40 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
