MABACT0039 - MACOM

Description: TRANSFORMER 1:1 TXLINE (BAISED O

Download MABACT0039 Model

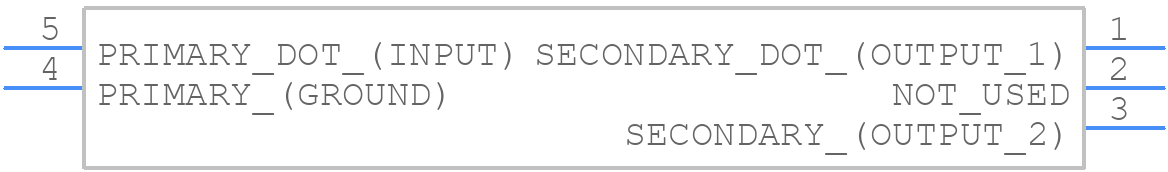

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MABACT0039 - MACOM PCB footprint - Other - Other - MABACT0039-1
click to zoom
3D Models
MABACT0039 - MACOM  - 3D model - Other - MABACT0039-1
click to zoom

MABACT0039 Details

  • Manufacturer Part Number:

    MABACT0039

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SM-138, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    6

  • Additional Feature:

    HEIGHT DIM INCLUDES TERMINALS ALSO, IMPEDANCE RATIO IS 4:1

  • Cut-off Frequency-Max:

    3000 MHz

  • Cut-off Frequency-Min:

    5 MHz

  • Height:

    3.89 mm

  • Insertion Loss:

    3.5 dB

  • Length:

    4.27 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    2.69 mm

MABACT0039 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
  • To ensure correct biasing, follow the recommended biasing circuit in the datasheet, and use a voltage regulator to maintain a stable voltage supply. Also, ensure the amplifier is operated within the recommended operating conditions.
  • The maximum input power that MABACT0039 can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Yes, MABACT0039 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper operation.
  • To troubleshoot common issues, check the PCB layout for any defects or inconsistencies, ensure proper biasing and termination, and verify that the amplifier is operated within the recommended operating conditions. Also, consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MABACT0039 Overview

Use the download button to access the MABACT0039 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MABAC, or try a keyword search, such as RF Transformers
