Part Image

MABACT0060 - MACOM

Description: RF Balun 5MHz ~ 1.2GHz 1:1, 50 / 50Ohm 5-SMD Module 5MHz ~ 1.2GHz

Download MABACT0060 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

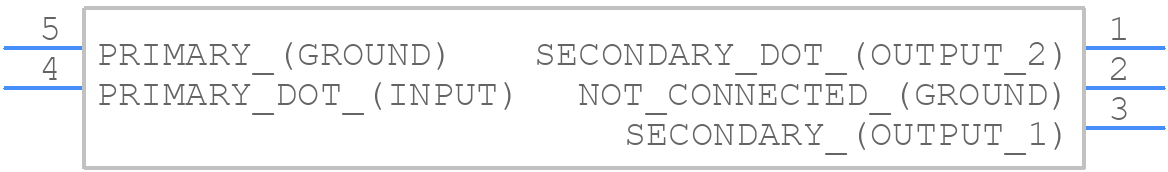

MABACT0060 - MACOM - PCB symbol
click to zoom
PCB Footprints
MABACT0060 - MACOM PCB footprint - Other - Other - 5-SMD Module_2025-1.1
click to zoom
3D Models
MABACT0060 - MACOM - 3D model - Other - 5-SMD Module_2025-1.1
click to zoom

MABACT0060 Details

  • Manufacturer Part Number:

    MABACT0060

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    1200 MHz

  • Cut-off Frequency-Min:

    5 MHz

  • Height:

    2.52 mm

  • Insertion Loss:

    1.1 dB

  • Length:

    4.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    4.21 mm

MABACT0060 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MABACT0060 is -40°C to 85°C.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet, and use a suitable biasing circuit to maintain a stable voltage supply.
  • The maximum input power rating for the MABACT0060 is 23 dBm.
  • Yes, the MABACT0060 can be used in a push-pull configuration, but it's essential to follow the recommended circuit design and layout guidelines to ensure optimal performance.
  • To minimize thermal resistance, ensure good thermal contact between the device and the heat sink, and use a suitable thermal interface material. Additionally, follow the recommended PCB design and layout guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MABACT0060 Overview

Use the download button to access the MABACT0060 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MABAC, or try a keyword search, such as RF Transformers
