MABACT0064 - MACOM

Description: Transformer, 4:1 Flux coupled balun transformer 1 to 650 MHz

Download MABACT0064 Model

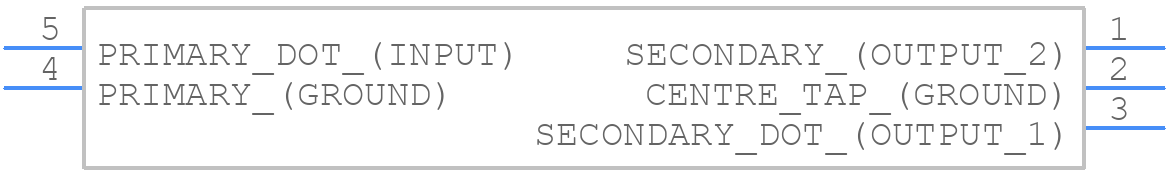

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MABACT0064 - MACOM PCB footprint - Other - Other - MABACT0064-1
click to zoom
3D Models
MABACT0064 - MACOM  - 3D model - Other - MABACT0064-1
click to zoom

MABACT0064 Details

  • Manufacturer Part Number:

    MABACT0064

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SM-138, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    7

  • Additional Feature:

    CENTER TAPPED SECONDARY; HEIGHT DIM. INCLUDES TERMINALS ALSO; IMPEDANCE RATIO IS 4:1

  • Cut-off Frequency-Max:

    650 MHz

  • Cut-off Frequency-Min:

    1 MHz

  • Height:

    3.52 mm

  • Insertion Loss:

    3.5 dB

  • Length:

    4.27 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2.69 mm

MABACT0064 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • MACOM provides a recommended PCB layout and impedance matching network in the application note AN-2171. Additionally, simulation tools like ADS or AWR can be used to optimize the impedance matching for specific applications.
  • The maximum operating temperature for the MABACT0064 is 105°C, but it's recommended to operate the device at a temperature below 85°C for optimal performance and reliability.
  • Yes, the MABACT0064 can be used in a push-pull configuration, but it requires careful design and layout consideration to ensure proper operation and minimize electromagnetic interference (EMI).
  • The recommended biasing scheme for the MABACT0064 is a voltage-controlled current source with a voltage range of 2.5V to 5.5V. The optimal bias point depends on the specific application and should be determined through characterization and testing.
