MABACT0069 footprint, schematic symbol and 3D model by MACOM

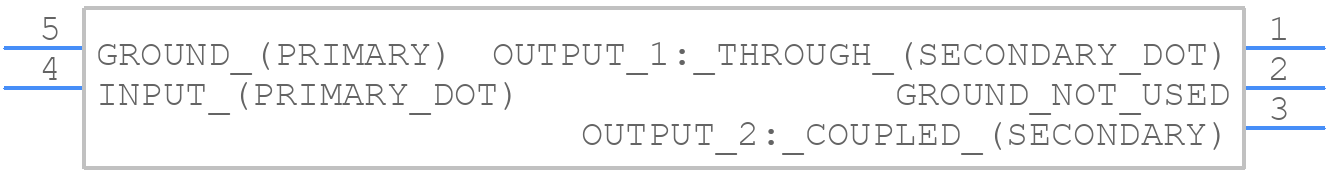

Symbol

PCB Footprints

3D Models

MABACT0069 Details

Manufacturer Part Number:
MABACT0069
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SM-158, ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
MACOM
YTEOL:
6.18
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINALS ALSO; IMPEDANCE RATIO IS 1:1
Cut-off Frequency-Max:
1200 MHz
Cut-off Frequency-Min:
50 MHz
Height:
4.54 mm
Insertion Loss:
1.5 dB
Length:
6.02 mm
Mounting Feature:
SURFACE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TAPE & REEL
Surface Mount:
YES
Transformer Type:
RF TRANSFORMER
Width:
2.64 mm

MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
MACOM recommends using a 50-ohm microstrip transmission line for impedance matching. The device's input and output impedances are 50 ohms, so a conjugate match is recommended to achieve optimal performance.
The recommended operating temperature range for MABACT0069 is -40°C to +85°C. Operating the device outside this range may affect its performance, reliability, and lifespan.
MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the MABACT0069 from electrostatic discharge. A minimum of 2 kV HBM and 100 V MM protection is recommended.
MACOM recommends powering up the VCC supply before applying the input signal, and powering down the VCC supply before removing the input signal. This ensures proper device operation and prevents damage.

Community Provided

System Verified

Community Approved

Use the download button to access the MABACT0069 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MABAC, or try a keyword search, such as RF Transformers
