MABAES0060 - MACOM

Description: Audio Transformers / Signal Transformers .3-200MHz IL 1.5dB Impedance Ratio 1:1

Download MABAES0060 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

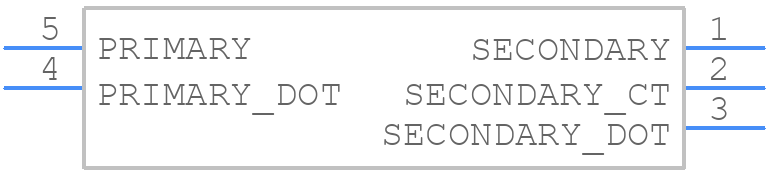

Symbol
MABAES0060 - MACOM - PCB symbol
click to zoom
PCB Footprints
MABAES0060 - MACOM PCB footprint - Other - Other - 6-SMD (5 Leads), Flat Lead
click to zoom
3D Models
MABAES0060 - MACOM - 3D model - Other - 6-SMD (5 Leads), Flat Lead
click to zoom

MABAES0060 Details

  • Manufacturer Part Number:

    MABAES0060

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    6

  • Additional Feature:

    IMPEDANCE RATIO IS 1:1

  • Cut-off Frequency-Max:

    200 MHz

  • Cut-off Frequency-Min:

    0.3 MHz

  • Height:

    3.8 mm

  • Insertion Loss:

    1.5 dB

  • JESD-609 Code:

    e4

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

MABAES0060 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
  • The MABAES0060 requires a bias voltage of 5V and a bias current of 250mA. Ensure the bias circuit is designed to provide a stable voltage and current to the amplifier.
  • The MABAES0060 can handle input powers up to +10 dBm. Exceeding this limit may result in amplifier compression and reduced performance.
  • Common issues include overheating, oscillation, and reduced gain. Troubleshoot by checking the bias circuit, ensuring proper heat sinking, and verifying the input signal is within specifications.
  • Yes, the MABAES0060 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MABAES0060 Overview

Use the download button to access the MABAES0060 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MABAE, or try a keyword search, such as RF Transformers
