MABAES0061 - MACOM

Description: Audio Transformers / Signal Transformers 2-800MHz IL 3dB Impedance Ratio 1:4

Download MABAES0061 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

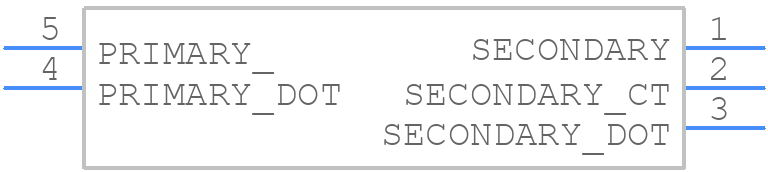

Symbol
MABAES0061 - MACOM - PCB symbol
click to zoom
PCB Footprints
MABAES0061 - MACOM PCB footprint - Other - Other - MABAES0061-2
click to zoom
3D Models
MABAES0061 - MACOM - 3D model - Other - MABAES0061-2
click to zoom

MABAES0061 Details

  • Manufacturer Part Number:

    MABAES0061

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    7

  • Additional Feature:

    WIDTH DIMENSION INCLUDE TERMINALS ALSO

  • Cut-off Frequency-Max:

    800 MHz

  • Cut-off Frequency-Min:

    2 MHz

  • Height:

    2.7 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

MABAES0061 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Follow the recommended biasing circuit in the datasheet, and ensure the voltage supply is stable and noise-free. Use a low-noise voltage regulator and decoupling capacitors to minimize voltage fluctuations.
  • The MABAES0061 can handle up to 2W of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Check the PCB layout, biasing, and power supply for any issues. Verify that the input and output impedances are matched, and the device is operated within its recommended specifications.
  • Yes, the MABAES0061 can be used in a push-pull configuration to improve linearity and reduce distortion. However, ensure that the devices are properly matched and biased for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MABAES0061 Overview

Use the download button to access the MABAES0061 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MABAE, or try a keyword search, such as Other Transformers
