MACOM provides a recommended PCB layout and footprint in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The device has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
MACOM recommends using a 50-ohm termination resistor in series with the device, and a DC blocking capacitor in series with the input signal. The output should be matched to 50 ohms using a resistive divider or a transmission line.
Common issues can be caused by improper PCB layout, poor soldering, or incorrect biasing. Check the device's operating conditions, ensure proper thermal management, and verify the input and output matching networks. Consult MACOM's application notes and technical support for further assistance.
Yes, MABC-001000-DP000L is designed to meet the requirements of high-reliability applications. MACOM provides a range of screening options, including burn-in and environmental testing, to ensure the device meets the necessary standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MABC-001000-DP000L Overview

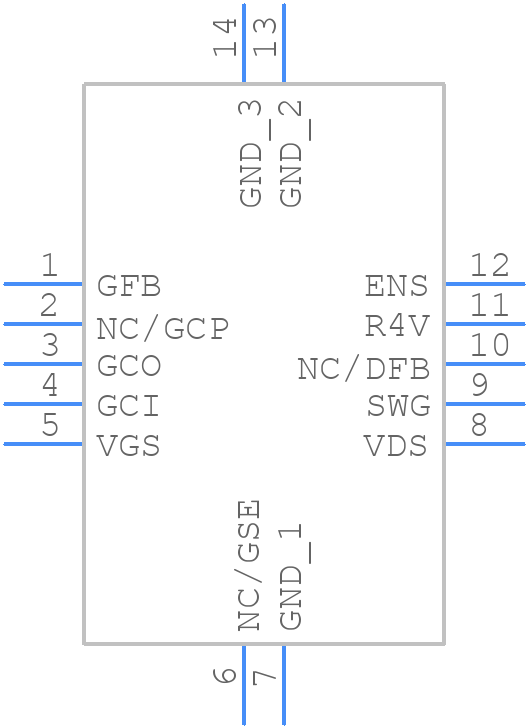

Use the download button to access the MABC-001000-DP000L schematic symbol, PCB footprint, and 3D model.
