MAC-42MH+ - Mini-Circuits

Description: Level 13, SMT High Reliability, RF/LO Freq 1000 - 4200 MHz

Download MAC-42MH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

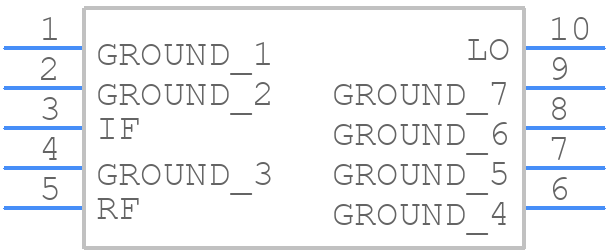

MAC-42MH+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MAC-42MH+ - Mini-Circuits PCB footprint - Other - Other - DZ1650
click to zoom
3D Models
MAC-42MH+ - Mini-Circuits - 3D model - Other - DZ1650
click to zoom

MAC-42MH+ Details

  • Manufacturer Part Number:

    MAC-42MH+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, CASE DZ1650, 10 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8 dB

  • Input Power-Max (CW):

    17 dBm

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • VSWR-Max:

    4.85
