MACF-060-230-HT-D-M - Synqor

Description: Military COTS AC Line Filter -55ºC to +100ºC 2kW @ 230Vrms 195m? @ 100ºC

Download MACF-060-230-HT-D-M Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MACF-060-230-HT-D-M model

Email notifications will be applied after download.

Send part feedback

Symbol

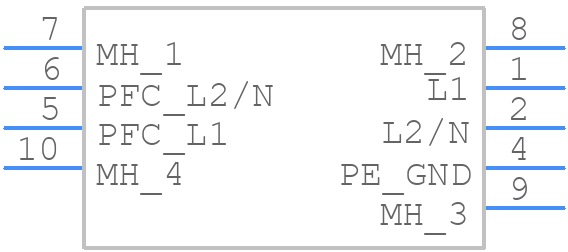

MACF-060-230-HT-D-M - Synqor - PCB symbol

PCB Footprints

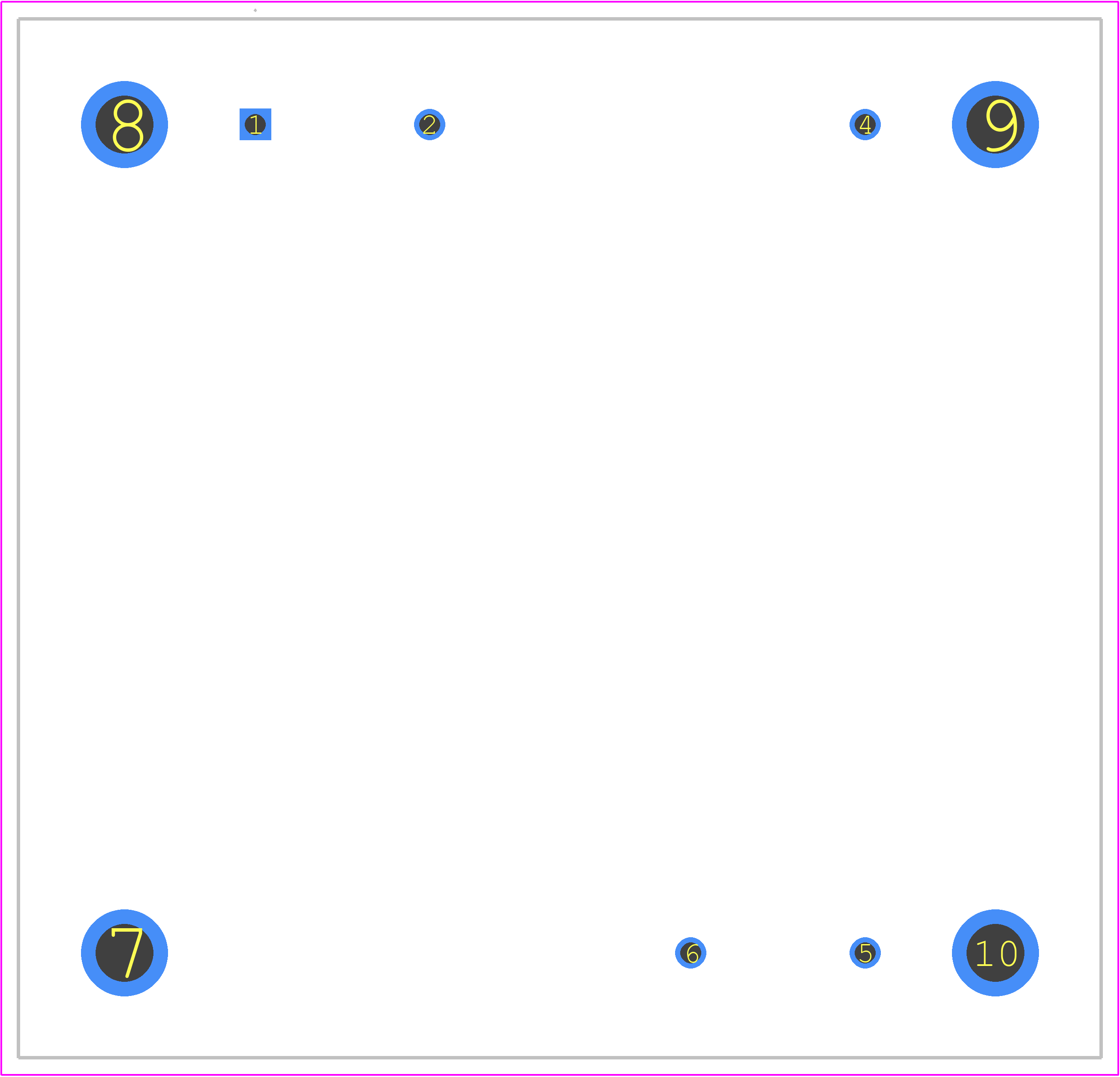

MACF-060-230-HT-D-M - Synqor PCB footprint - Other - Other - MACF-060-230-HT-D-M-1

3D Models

MACF-060-230-HT-D-M - Synqor - 3D model - Other - MACF-060-230-HT-D-M-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for MACF-060-230-HT-D-M
Part Number MACF-060-230-HT-D-M
Manufacturer Synqor
Pin Count 9
Part Category Filter
Package Category Other
Footprint Name Other - MACF-060-230-HT-D-M-1
Released Date Sep 4, 2026
Last Modified Date Sep 3, 2026 6:33 AM UTC
Pinout / Pin List Click Here (Member Only)

MACF-060-230-HT-D-M Details

Manufacturer Part Number:
MACF-060-230-HT-D-M
Part Life Cycle Code:
Active
Country Of Origin:
USA
Manufacturer:
SynQor
Filter Type:
SINGLE PHASE EMI FILTER
