MACOM recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal via to ensure optimal thermal management. A well-designed PCB layout can help reduce thermal resistance and improve overall performance.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using thermal compensation techniques, such as temperature sensing and compensation, to maintain optimal performance across the entire operating temperature range.
Operating the device at maximum ratings can lead to reduced reliability and lifespan. MACOM recommends derating the device by 10-20% to ensure reliable operation and extend its lifespan. Consult the datasheet and application notes for specific derating guidelines.
To troubleshoot common issues, start by verifying the PCB layout, component selection, and soldering quality. Check for proper decoupling, biasing, and termination. Consult MACOM's application notes and technical support resources for guidance on troubleshooting and resolving specific issues.
Yes, the MACP-009730-C60370 is a sensitive device and requires proper ESD protection and handling precautions. Use an ESD wrist strap, mat, or workstation, and follow MACOM's recommended handling and storage procedures to prevent damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MACP-009730-C60370 Overview

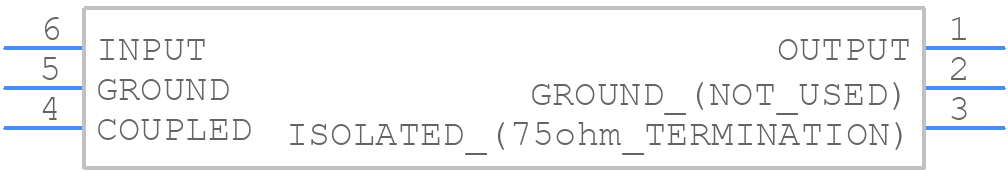

Use the download button to access the MACP-009730-C60370 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MACP-,
or try a keyword search, such as RF/Microwave Couplers
