- Part Number MACP-011045
- Manufacturer MACOM
- Pin Count 6
- Part Category Filter
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MACP-011045
- Released Date Mar 19, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MACP-011045 Details
-
Manufacturer Part Number:
MACP-011045
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
MACOM
-
RF/Microwave Device Type:
DIRECTIONAL COUPLER
MACP-011045 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
Use a heat sink with a thermal conductivity of at least 1 W/m-K and ensure good thermal contact between the device and the heat sink. Keep the ambient temperature below 85°C.
-
The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower. Impedance matching is crucial for optimal performance.
-
Use a shielded enclosure, keep the device away from other noise sources, and use EMI filters or absorbers if necessary. Ensure good grounding and decoupling of the device.
-
The maximum operating frequency is 45 GHz, but the device can be used up to 50 GHz with some degradation in performance.
Trust Checks
Community Provided
System Verified
Community Approved
MACP-011045 Overview

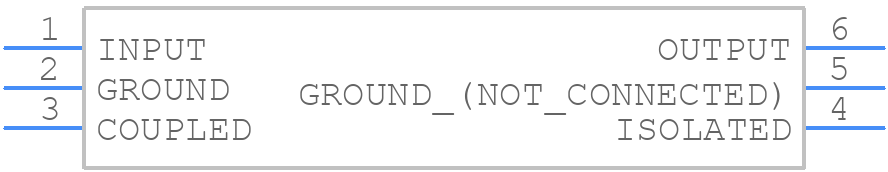

Use the download button to access the MACP-011045 schematic symbol, PCB footprint, and 3D model.
