MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a thermal plane on the PCB.
The device requires a bias tee or a DC block to provide the correct voltage and current. A bias voltage of 5V and a current of 100mA is recommended. The bias circuit should be designed to provide a low impedance path to ground.
MACOM recommends a conjugate match at the input and output of the device. A pi-network or a T-network can be used to match the device to 50 ohms. The matching network should be designed to provide a return loss of at least 15dB.
The device is sensitive to ESD, so it's essential to handle it in an ESD-controlled environment. Use ESD-safe materials, and ensure that all personnel handling the device are grounded. Avoid touching the device's pins or exposed die.
Store the device in its original packaging or in a dry, ESD-controlled environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures. Handle the device by the package, not the pins or die.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MADL-011021-14150T Overview

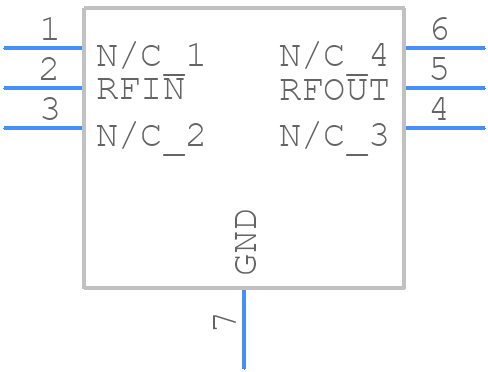

Use the download button to access the MADL-011021-14150T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADL-,
or try a keyword search, such as PIN Diodes
