MADL-011023-14150T - MACOM

Description: RF Diode PIN - Single 6-TDFN (1.5x1.2) PIN Diode Limiter 10 MHz - 12 GHz

Download MADL-011023-14150T Model

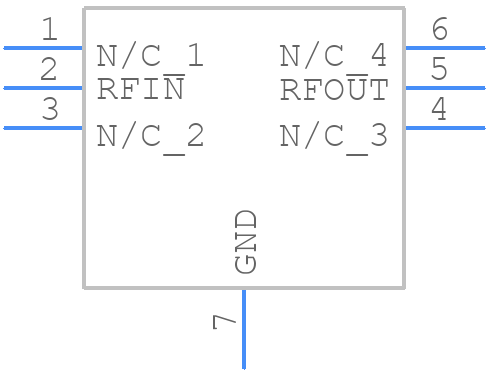

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MADL-011023-14150T - MACOM PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead TDFN
click to zoom
3D Models
MADL-011023-14150T - MACOM  - 3D model - Small Outline No-lead - 6-Lead TDFN
click to zoom

MADL-011023-14150T Details

  • Manufacturer Part Number:

    MADL-011023-14150T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    MACOM

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    37 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    10 MHz

  • RF/Microwave Device Type:

    LIMITER

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.2

MADL-011023-14150T Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
  • The device requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V and a current of 350mA is recommended. The bias circuit should be designed to provide a low impedance path to ground.
  • MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor can be used to match the input and output impedance to 50 ohms.
  • The device is sensitive to ESD, and proper handling and storage procedures should be followed to prevent damage. Anti-static wrist straps, mats, and packaging should be used when handling the device.
  • The recommended operating temperature range for the MADL-011023-14150T is -40°C to 85°C. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MADL-011023-14150T Overview

Use the download button to access the MADL-011023-14150T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADL-, or try a keyword search, such as RF/Microwave Limiters
