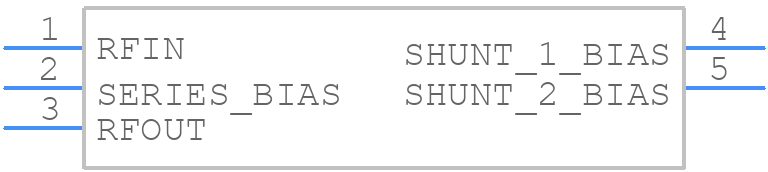

MADP-007167-12250T footprint, schematic symbol and 3D model by MACOM

Symbol

PCB Footprints

3D Models

MADP-007167-12250T Details

MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed application note is available from MACOM for reference.
The MADP-007167-12250T requires a bias voltage of 5V and a bias current of 350mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly connected to the bias circuit.
The recommended operating temperature range for the MADP-007167-12250T is -40°C to 85°C. Operating the device outside of this range may affect its performance and reliability.
The MADP-007167-12250T has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or thermal ground plane to maintain a low junction temperature.
Store the MADP-007167-12250T in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package body, avoiding touching the leads or electrical connections to prevent damage or contamination.
