A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. A thermal pad on the bottom of the device should be connected to a thermal plane or a heat sink.
The device requires a bias voltage of 5V ± 10% and a bias current of 100mA ± 10%. Ensure the bias circuitry is designed to provide a stable voltage and current supply. A decoupling capacitor of 100nF or higher is recommended.
A conjugate match is recommended for optimal performance. Use a pi-network or a T-network with a 50Ω characteristic impedance. The input and output impedances of the device are 50Ω. Use a network analyzer to optimize the matching network.
The device has internal ESD protection, but additional external protection is recommended. Use a TVS diode or a spark gap protector at the input and output ports. Ensure the PCB layout is designed to minimize ESD susceptibility.
The recommended operating temperature range is -40°C to 85°C. Ensure the device is operated within this range for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MADP-011029-14150T Overview

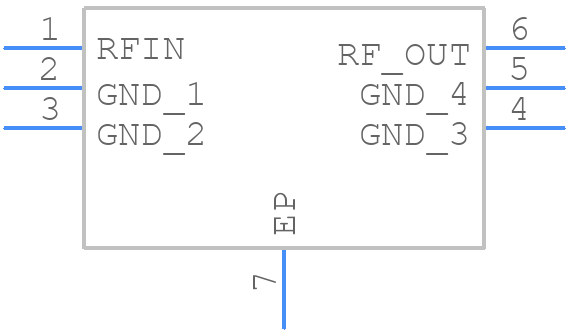

Use the download button to access the MADP-011029-14150T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MADP-,
or try a keyword search, such as PIN Diodes
